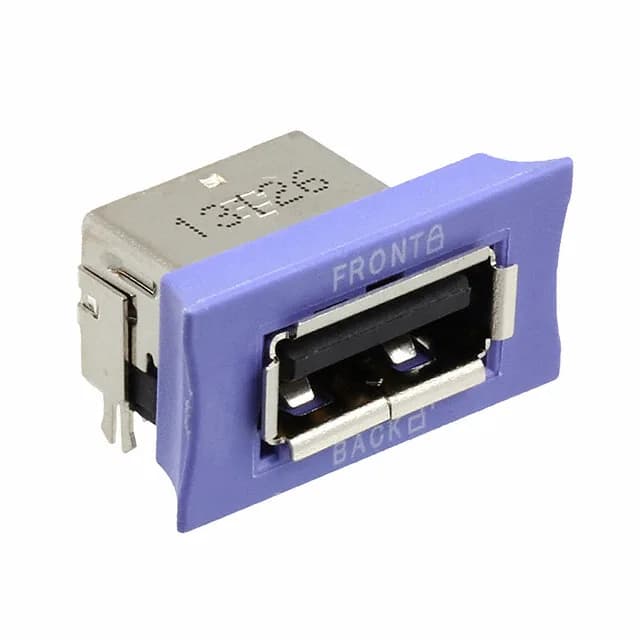

TE Connectivity USB-A (USB TYPE-A) receptacle, 4 contacts, USB 2.0, right-angle through-hole, horizontal mount, gold contacts, board lock and sliding collar, UL94 V-0, tray.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Positions | 4 |
| Mounting feature | Horizontal |
| Insulation color | Black |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Lock, Sliding Collar |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
It carries 4 contacts in a single port, with gold-plated contacts for corrosion resistance across repeated mating cycles.
It is not electrically or mechanically compatible with USB 3.0 or 3.1 connectors, which require additional contacts and a different internal contact arrangement. The pinout follows the standard USB Type-A assignment: pin 1 VBUS, pin 2 D−, pin 3 D+, pin 4 GND.
TE Connectivity has not published an official direct replacement for the 2041370-1. The closest functional match would be another right-angle, through-hole USB-A receptacle with board lock, but the sliding collar feature is uncommon. Cross-reference against the board footprint and mating half before substituting.
