TE Connectivity AMP Connectors 2057409-1
MPN2057409-1
Active

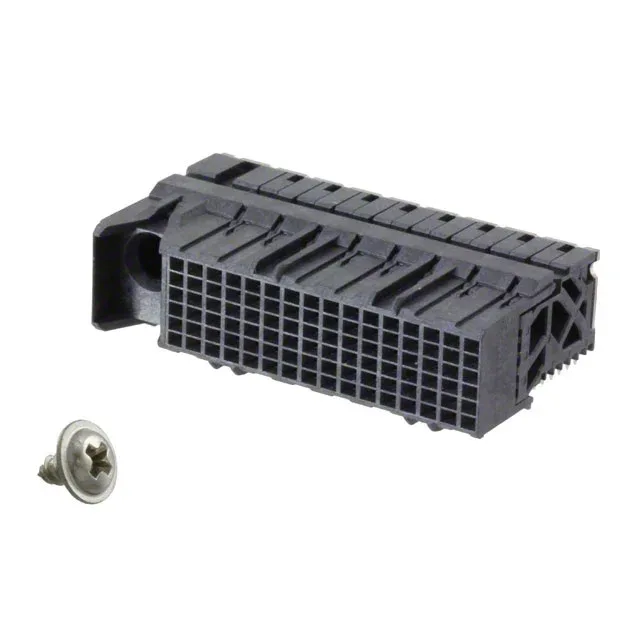

CONN RCPT IMPACT 96POS PCB
$19.34Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesImpact
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Impact |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 30V |
| Current rating | 0.75A |
| Connector usage | Daughtercard |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.075\" (1.91mm) |
| Package | Tube |
| Features | Board Guide |
| Termination | Press-Fit |
| Contact finish | Gold |
| Rows | 6 |
| Number of columns | 16 |
| Positions | 96 |
| Contact finish thickness | 30.0µin (0.76µm) |
