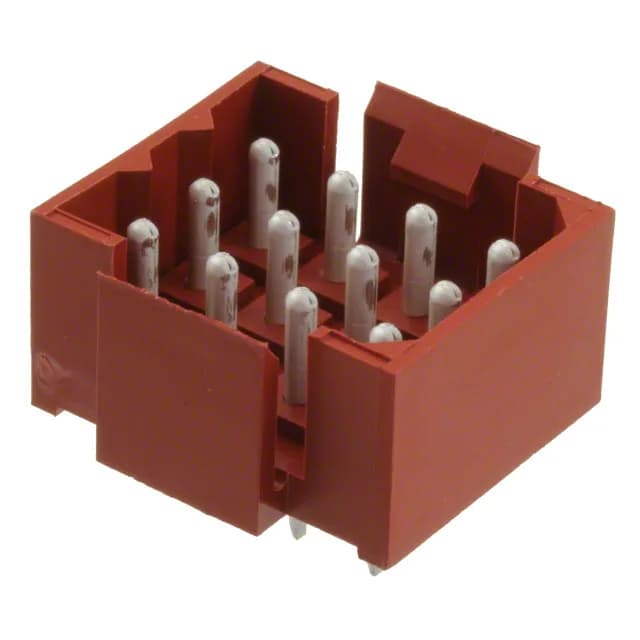

TE Connectivity Metrimate header, order code 207120-2, 12 positions, 3 rows, 5.00 mm pitch, 7.5 A, 600 V, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall.
TE Connectivity 207120-2 Metrimate Header, 12 Pos, 5.00mm
MPN207120-2
Obsolete
TE Connectivity Metrimate header, order code 207120-2, 12 positions, 3 rows, 5.00 mm pitch, 7.5 A, 600 V, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall.
$4.2300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Brass |
| Insulation color | Black, Red |
| Insulation height | 0.464\" (11.79mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Product details
Frequently asked questions
How do I get current pricing and availability for the 207120-2?
Availability is confirmed at RFQ through independent surplus channels; quantities are lot-specific.
