What This Header Connects To and How It Mounts

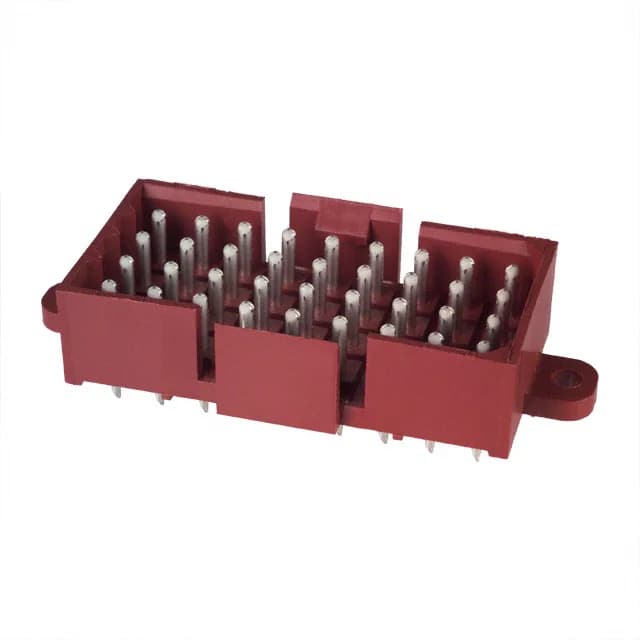

The 207121-1: This is a 36-position, 4-row shrouded header with a latch lock — mates with the corresponding Metrimate receptacle housing (crimp or IDC termination). The mounting flange provides additional mechanical retention against cable strain.
Rated for Industrial and Automotive Environments
Rated 7.5A per contact at 600V with tin-plated brass contacts (150µin tin on both mating face and post).
Metrimate Series Positioning
Part of the TE Metrimate series — a modular, high-density rectangular connector family for wire-to-board and wire-to-wire applications. The 4-wall shrouding and latch lock make it suitable for vibration-prone environments like automotive and industrial machinery.
