207158-1 TE 6-Position 5.00mm Header, 600V 7.5A
MPN207158-1
Obsolete

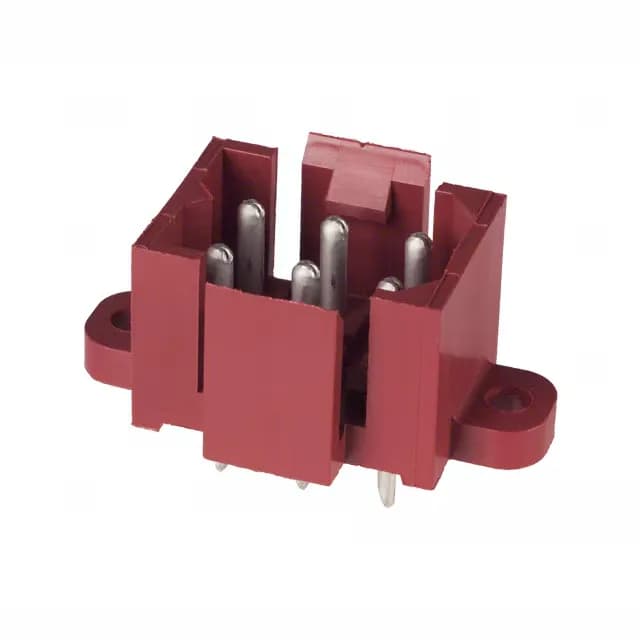

TE Connectivity Metrimate 207158-1, 6-position dual-row header, 5.00 mm pitch, 0.197" row spacing, 600 V, 7.5 A per contact, tin-plated brass contacts, latch-lock 4-wall shroud, through-hole solder termination, mounting flange, operating -55°C to 130°C, UL94 V-0 polyamide insulation, black/red.
$2.7000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C~130°C |
| Contact material | Brass |
| Insulation color | Black, Red |
| Insulation height | 0.464\" (11.79mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Frequently asked questions
Where can I source the 207158-1 and what is the lead time?
The 207158-1 is sourced to order through independent distribution — availability and lead time are confirmed against the RFQ quantity, with surplus and broker channels holding remaining stock where it exists.
What is the 207158-1's listed series?
The 207158-1 is listed in the TE Connectivity Metrimate series.
