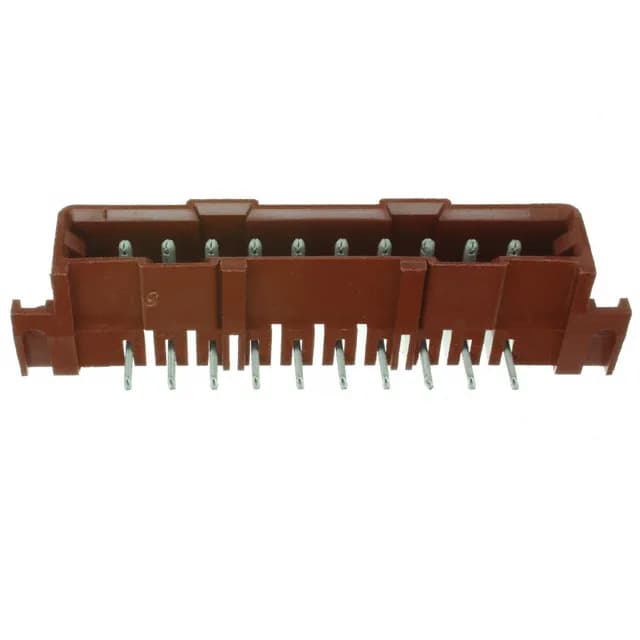

10-position Metrimate header, right-angle through-hole
The 207398-1: It carries tin-lead contacts rated 7.5 A at 600 V, mounts through-hole right-angle, and operates from -55°C to 130°C with a UL94 V-0 polyamide housing.
TE Metrimate 207398-1 Header, 10 Pos, 5.00mm, Obsolete
MPN207398-1
Obsolete
TE Connectivity AMP Connectors Metrimate header, order code 207398-1, 10 positions, single row, 5.00 mm pitch, 7.5 A, 600 V, tin-lead mating contacts, through-hole right-angle, solder termination.
$14.5900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Brass |
| Insulation color | Black, Red |
| Insulation height | 0.500\" (12.70mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.192\" (4.88mm) |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Product details
Frequently asked questions
How do I get current pricing and availability for 207398-1?
Availability and pricing are confirmed at RFQ.
