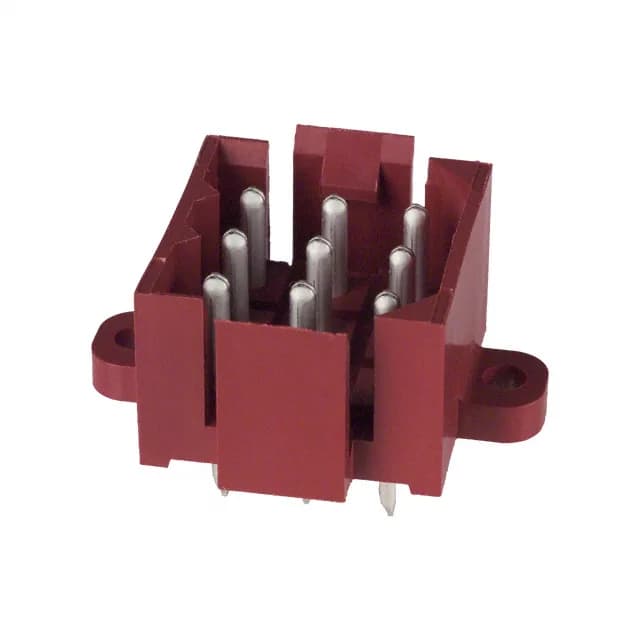

TE Connectivity Metrimate header, order code 207441-1, 9 positions, 3 rows, 5.00 mm pitch, 7.5 A, 600 V, tin-plated brass contacts, latch lock, 4-wall shroud, through-hole solder termination.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Brass |
| Insulation color | Black, Red |
| Insulation height | 0.464\" (11.79mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 9 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 207441-1: Tin-plated mating contacts and a 4-wall shroud with latch lock suit the header for board-to-board or cable connections in automotive, industrial, and general-purpose equipment.
The 207441-1 carries 9 positions across 3 rows at 5.00 mm pitch — the Metrimate series also offers headers at other position counts sharing the same pitch and row spacing.
The 207441-1 is a header from the Metrimate series, listed as a Board to Board or Cable style.
