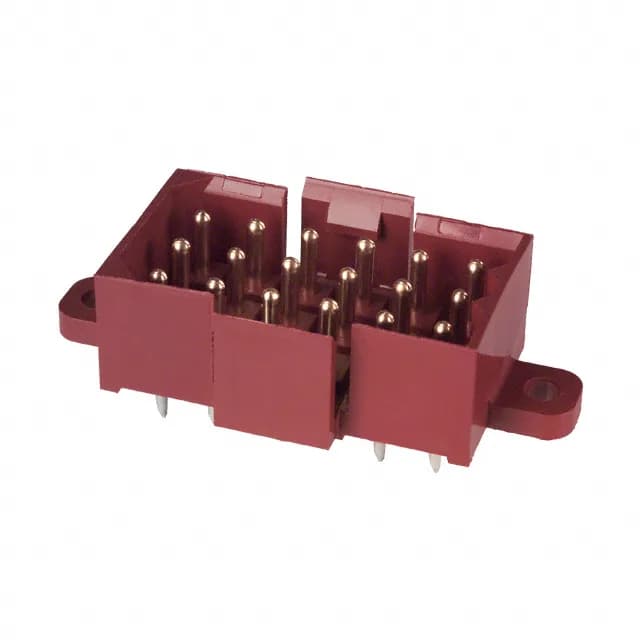

TE Metrimate 207444-3 Header 18-Pos 5.00mm
TE Connectivity Metrimate 207444-3 header, 18-position 3-row 5.00mm pitch, 600V rated, 7.5A per circuit, gold-plated mating contacts with tin-lead solder tails, circular brass pins, latch-lock shroud, through-hole mount with flange, operating -55 to 130°C.
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Brass |
| Insulation color | Black, Red |
| Insulation height | 0.464\" (11.79mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 18 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Frequently asked questions
What does the 207444-3 mate with?
It is a male-pin shroud header designed to mate with the matching Metrimate female receptacle housing in the same series. The four-wall shroud and latch-lock posting are keyed to the corresponding receptacle form.
What is the current rating and what does it mean for circuit selection?
7.5 A per circuit at the gold-mating face — that headroom covers power-distribution nodes and mixed signal without needing to derate to a signal-only figure. The tin-lead solder post accepts the full 7.5 A at the board interface provided PCB trace width and via thermal relief follow the derating curve for the application temperature.
What connector series is the 207444-3 from?
It is a member of the TE Connectivity Metrimate series, a 5.00 mm pitch connector family with latch-lock shroud options across multiple position counts and row configurations.
