Board-to-Wire Power Header, 4 Circuits, 5.00 mm Pitch

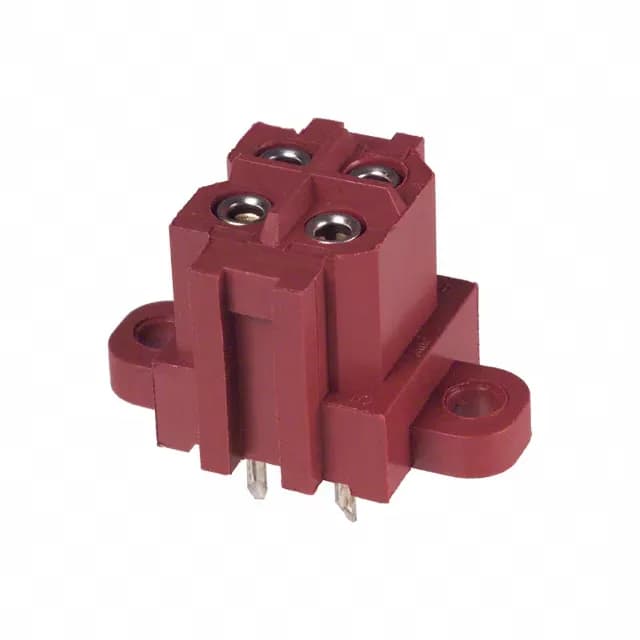

The 207496-7: The through-hole termination and latch holder fastening with mounting flange provide mechanical stability against cable strain and vibration.
Sizing the Mating Half and Board Fit
This header accepts a female socket contact (circular contact shape) and mates with a corresponding Metrimate plug housing. The 0.181" (4.60 mm) solder post length is standard for through-hole soldering on 1.6 mm PCBs. The 600 V rating is a maximum — actual working voltage should be derated per the application's creepage and clearance requirements.
