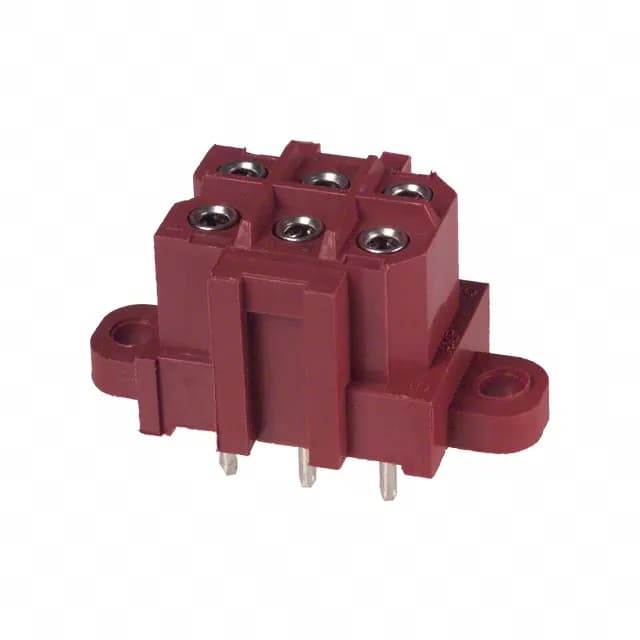

Molex 207524-1, 6-Pos Metrimate Header, 5.00mm Pitch, 7.5A
MPN207524-1
Active
Molex Metrimate 207524-1, 6-position dual-row header, 5.00mm pitch, 7.5A per circuit at 600V, tin-lead contacts on mating and post (150µin), through-hole mount with mounting flange, latch holder fastening, circular female socket contacts, -55 to 130°C operating range, UL94 V-0.
$9.5600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.565\" (14.35mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Mounting Flange |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Frequently asked questions
Who supplies 207524-1 and how is it quoted for volume purchases?
Sourced through independent distribution, quoted to order against the BOM quantity. Availability and current pricing are confirmed at quote time — reach out with your required volume and date code preference to get a firm quote.
What is 207524-1's listed style and series on this component?
Style is Board to Cable/Wire; it belongs to the Metrimate series — Molex's dual-row 5.00mm pitch power header family.
