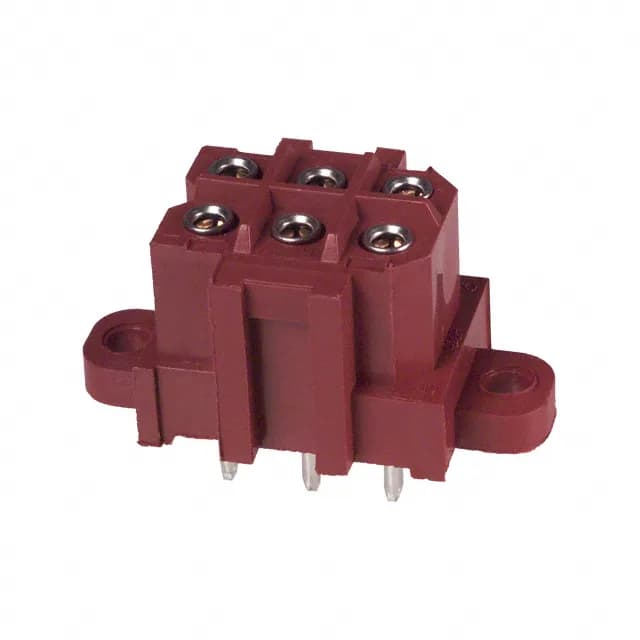

207524-3 - TE Connectivity AMP Connectors
MPN207524-3
Obsolete
$12.8500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.565\" (14.35mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Mounting Flange |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
