TE Connectivity Metrimate series, 207524-9, a through-hole female socket header, 6 positions, 2 rows, 5.00mm pitch, gold-plated mating contacts, rated 7.5A at 600V, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |

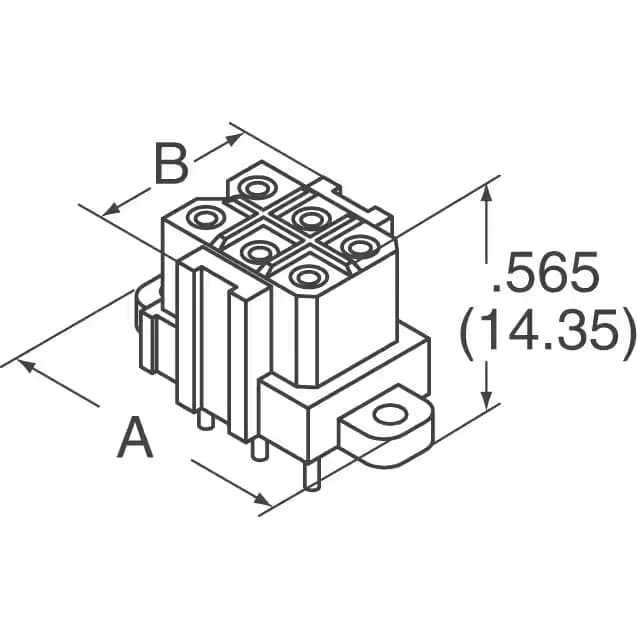

| Insulation height | 0.565\" (14.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Mounting Flange |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
In a panel that gets serviced quarterly, that is well over a century of reconnect life at the contact interface. The mounting flange takes the cable strain off the solder tails, so the through-hole joints don't fatigue in a vibrating panel.
