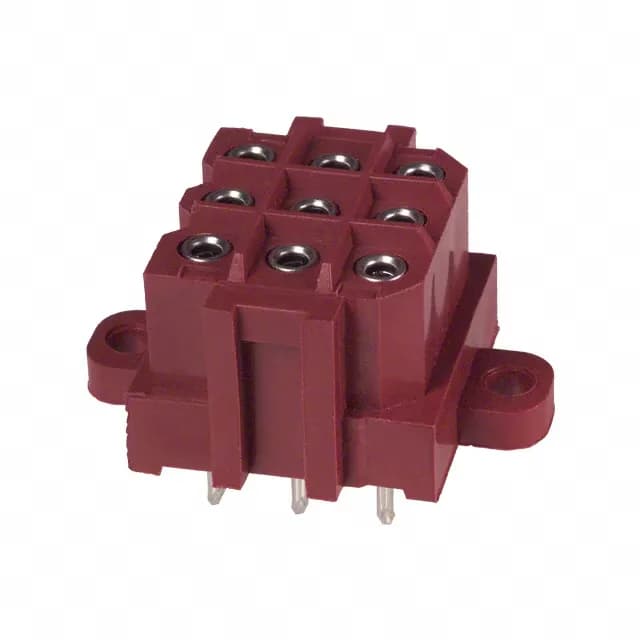

TE Connectivity Metrimate 207526-3, 9-position 3-row board-to-cable header, 5.00mm pitch, 600V, 7.5A per circuit, gold-plated mating contacts, through-hole solder, latch holder, mounting flange
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.565\" (14.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Mounting Flange |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 9 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 207526-3: The 0.197" (5.00mm) pitch and matching 0.197" row spacing define the PCB footprint — this is a standard industrial grid that leaves room for trace routing between pads on a 2-layer board without necking down below 0.010" trace width.
The mounting flange provides mechanical retention to the board, taking strain off the solder joints when the cable is moved.
The contact finish on the post is tin-lead, which is not RoHS compliant. The mating finish is gold. If RoHS compliance is required, this part does not meet it as listed.
