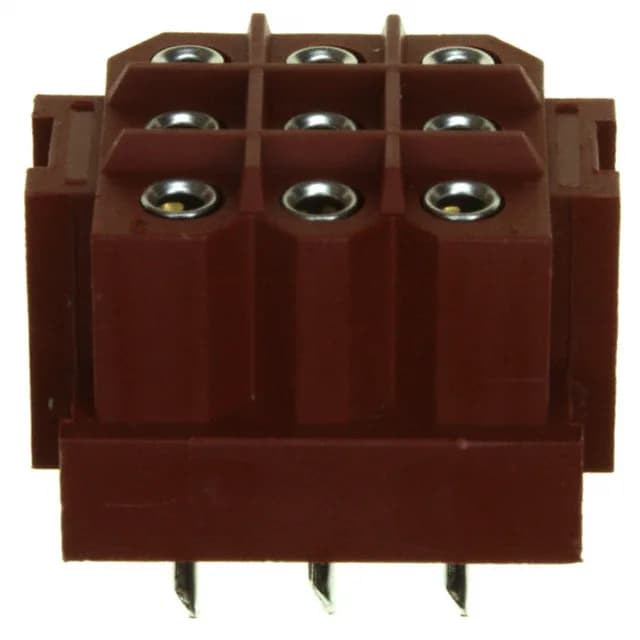

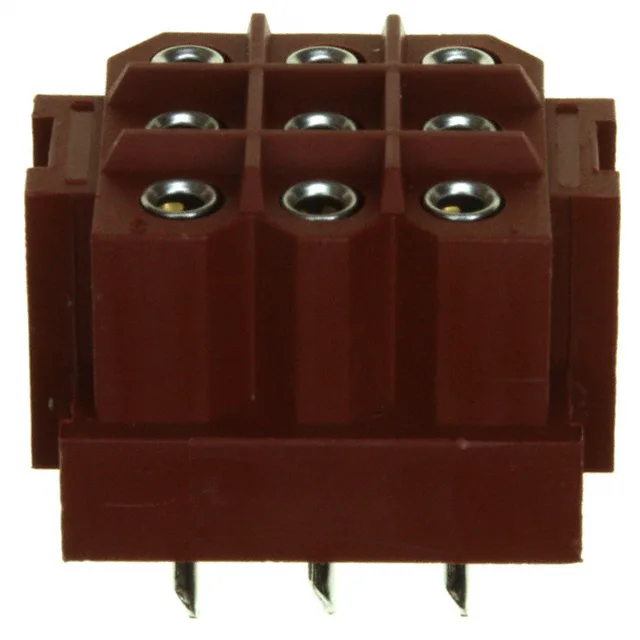

TE Connectivity AMP Connectors Metrimate header, order code 207526-4, 9 positions, 3 rows, 0.197" (5.00mm) pitch, 7.5 A, 600 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.565\" (14.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 9 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 207526-4: It carries gold-plated mating contacts rated 7.5 A at 600 V, with a 0.197" (5.00mm) pitch and a UL94 V-0 polyamide housing in red insulation.
The 207526-4 is listed as Obsolete by TE Connectivity AMP Connectors.
The 207526-4 is available through independent surplus channels. Submit a request for quote with the target quantity.
The functional replacement may require a different package and pinout — a board spin is required.
