9-position, 3-row Metrimate header for board-to-wire harnesses

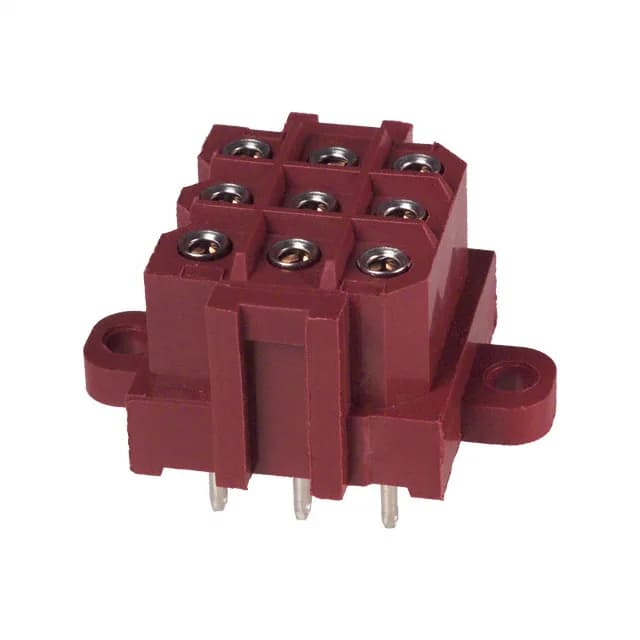

This 207526-7 header from TE's Metrimate series is a board-to-wire connector with 9 positions arranged in 3 rows at a 5.00 mm pitch — a common footprint for power and signal distribution in industrial and automotive enclosures.
Mates with Metrimate receptacles; latch holder secures the pair
The header mates with standard Metrimate female socket receptacles (crimp or solder type) using the integral latch holder and mounting flange — no additional hardware needed for vibration resistance. The 0.565-inch (14.35 mm) insulation height and 0.181-inch (4.60 mm) post length define the board-to-mating interface clearance; confirm the receptacle's stack height against your enclosure lid.
