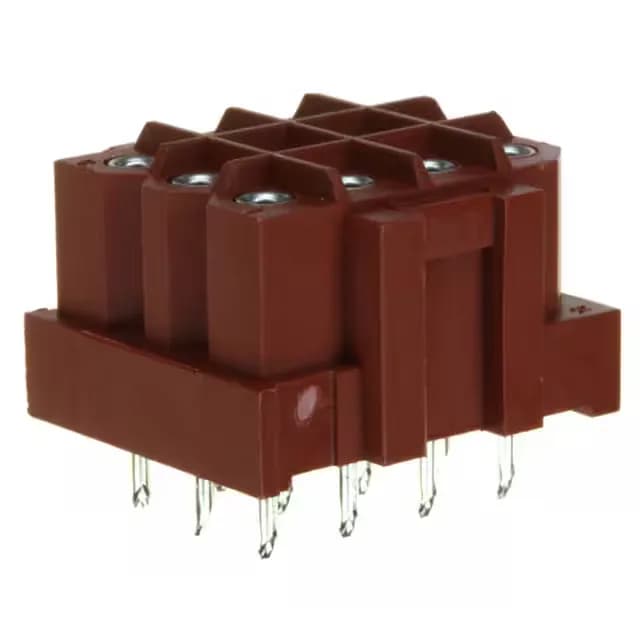

207528-2 Metrimate Header 12-pos 3-row 5.00mm
MPN207528-2
Active
TE Connectivity Metrimate header, 12 positions, 3 rows, 5.00mm pitch, 600V, 7.5A per circuit, tin-lead contacts, through-hole mount, latch holder fastening, -55°C to 130°C operating range.
$8.7400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.565\" (14.35mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Frequently asked questions
What is 207528-2's listed style?
The 207528-2 is classified as Board to Cable/Wire style — a board-mount header that accepts a wire-side receptacle housing to complete the harness connection.
What is 207528-2's listed series?
The 207528-2 belongs to the Metrimate series — TE Connectivity's 5.00 mm pitch connector family for industrial power and signal applications.
