TE Connectivity AMP Connectors 207528-7 — Pin Headers, Sockets & Housings

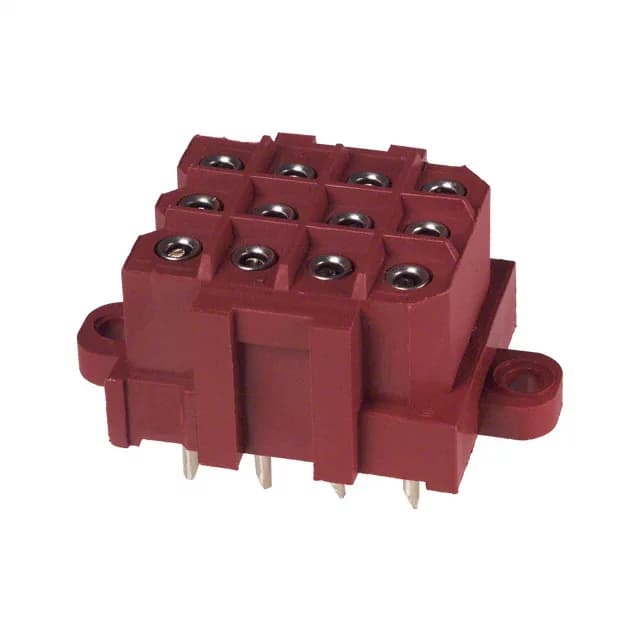

207528-7 TE Metrimate Header, 5.00mm Pitch, 12 Pos, 7.5A

MPN207528-7
Active

TE Connectivity AMP Connectors Metrimate header, 207528-7, board-to-cable/wire style, 12 positions, 3 rows, 5.00mm pitch, 7.5A, 600V, through-hole solder termination, tin-plated contacts, latch holder fastening, mounting flange, UL94 V-0 nylon housing.

$12.1300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 207528-7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

207528-7 key specifications
ParameterValue
SeriesMetrimate
TypeFemale Socket
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating600V
Current rating7.5A
Operating temperature-55°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack, Red
Insulation height0.565\" (14.35mm)
Insulation materialPolyamide (PA), Nylon

All specifications

207528-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesMounting Flange
TerminationSolder
Contact shapeCircular
Rows3
Pitch0.197\" (5.00mm)
Positions12
Row spacing - mating0.197\" (5.00mm)
Contact finish - postTin
Contact length - post0.181\" (4.60mm)
Contact finish - matingTin
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

5.00mm Pitch Metrimate Header for Panel Wiring

The 207528-7: A 600V voltage rating and 7.5A per contact suit it for power distribution inside industrial control panels and equipment enclosures.

3-Row Layout and Mounting Flange

Three rows at 0.197" (5.00mm) row spacing pack 12 positions into a wider body than a dual-row equivalent. The mounting flange bolts the header to the panel or chassis, transferring cable strain away from the solder joints. The housing is black and red polyamide (nylon), rated UL94 V-0 for flammability inside enclosed equipment.

Frequently asked questions

How can I order the 207528-7 or check stock?

The 207528-7 is an active part sourced through independent distribution. No stock-holding claim is made; we source per order.

What is the pitch of the 207528-7 header?

The mating pitch is 0.197" (5.00mm), with the same row spacing. This matches the standard Metrimate receptacle footprint.

Does the 207528-7 have a mounting flange?

Yes, it includes a mounting flange for bolting the header to the panel or chassis, providing mechanical retention against cable strain.
