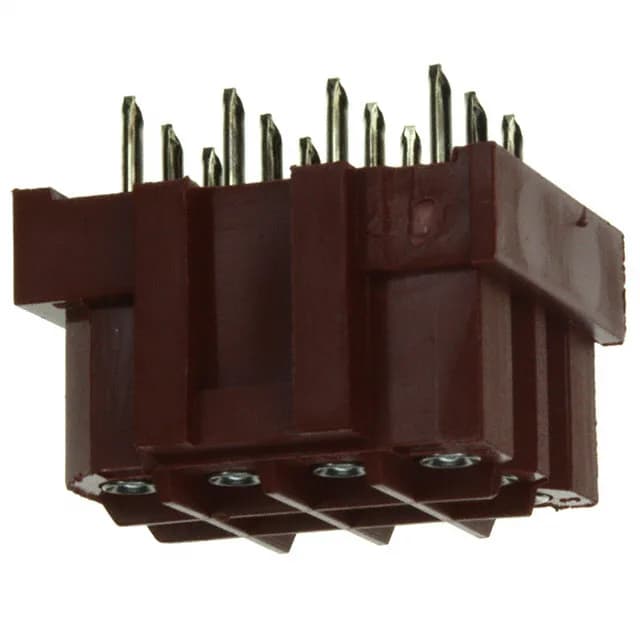

TE Connectivity AMP Connectors Metrimate 207528-8, board-to-cable header, 12 positions, 3 rows, 0.197" (5.00 mm) pitch, 7.5 A per circuit, 600 V, tin-plated phosphor bronze contacts, through-hole solder termination, UL94 V-0 polyamide housing.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.565\" (14.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 207528-8 is a 12-position, 3-row board-to-cable header from TE's Metrimate series. Pitch is 0.197" (5.00 mm) on both the mating and row spacing, giving generous room for routing traces at the 600 V rating.
The UL94 V-0 polyamide housing holds the 600 V rating; the black and red insulation colour helps identify the row orientation during harness assembly.
