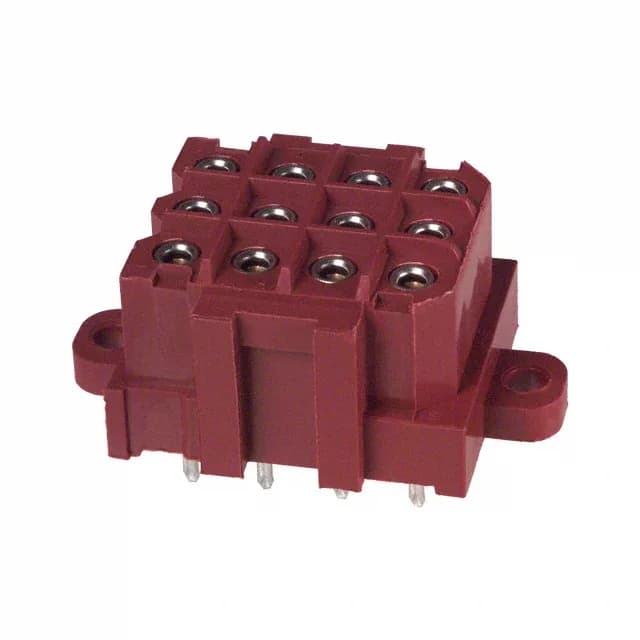

TE Connectivity AMP Connectors 207528-9 — Female Socket Headers

207528-9 TE Connectivity Metrimate Header 12 Pos 5mm Pitch

MPN207528-9
Active

TE Connectivity AMP Connectors Metrimate, 207528-9, Board to Cable/Wire, Header, Female Socket, 12 Positions, 3 Rows, 0.197" (5.00mm) Pitch, Solder, Through Hole, Gold Mating, Tin Post, 7.5A, 600V, -55°C ~ 130°C, UL94 V-0, Tray

$19.5800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 207528-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMetrimate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

207528-9 key specifications
ParameterValue
SeriesMetrimate
TypeFemale Socket
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating600V
Current rating7.5A
Operating temperature-55°C ~ 130°C
Contact materialPhosphor Bronze
Insulation colorBlack, Red
Insulation height0.565\" (14.35mm)
Insulation materialPolyamide (PA), Nylon

All specifications

207528-9 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesMounting Flange
TerminationSolder
Contact shapeCircular
Rows3
Pitch0.197\" (5.00mm)
Positions12
Row spacing - mating0.197\" (5.00mm)
Contact finish - postTin
Contact length - post0.181\" (4.60mm)
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

12-position 3-row layout for power distribution

The 0.197" (5.00 mm) pitch and matching row spacing define the PCB footprint and dictate the mating connector family — expect a 3-row receptacle with the same pitch. Rated 7.5 A per contact at 600 V, this header can handle moderate power distribution across all 12 circuits.

Mounting flange and latch holder for vibration resistance

A mounting flange on each end lets you bolt the header to the panel or chassis, taking mechanical strain off the solder joints. Tin plating on the post (150 µin) ensures good solderability and corrosion resistance at the board interface.

Frequently asked questions

What is the mating connector for 207528-9?

The mating half is a 3-row Metrimate receptacle with 0.197" (5.00 mm) pitch and latch holder fastening. Confirm the circuit count and orientation before ordering.

Does 207528-9 have a mounting flange?

Yes, the header includes a mounting flange on each end for secure panel attachment.

Is 207528-9 RoHS compliant?

Yes, it is ROHS3 compliant.
