Board-to-wire header, 18-circuit Metrimate

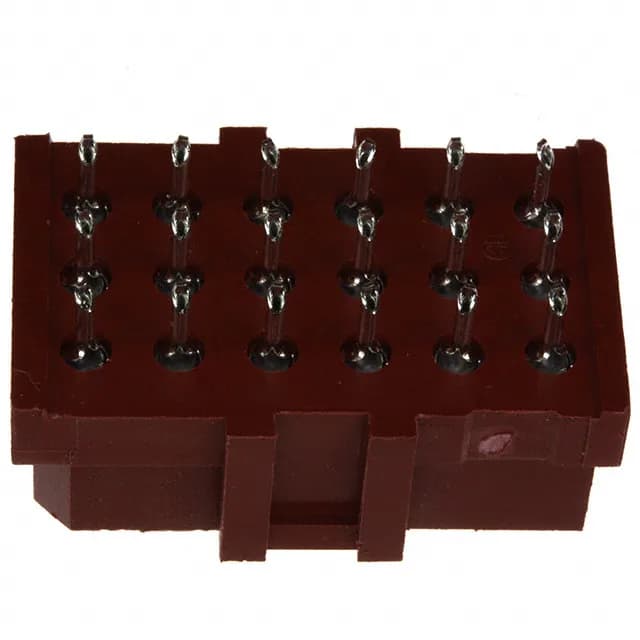

The 207530-4 is the 18-circuit member of TE Connectivity's Metrimate header line, a 3-row board-to-cable/wire connector on 5.00 mm pitch. Rated 7.5 A per contact at 600 V, with gold-plated mating contacts and through-hole solder termination.
Series footprint and position count
The Metrimate series shares a common 5.00 mm mating pitch and 0.197" row spacing across all position counts. The 18-position 207530-4 uses all 18 loaded positions in a 3-row layout — match the circuit count to the BOM requirement; the footprint and keying are consistent within the series.
