24-position 4-row Metrimate header for board-to-cable wiring
Rated at 7.5 A per contact and 600 V, it handles signal and moderate power distribution in industrial control, automation, and equipment interconnects.

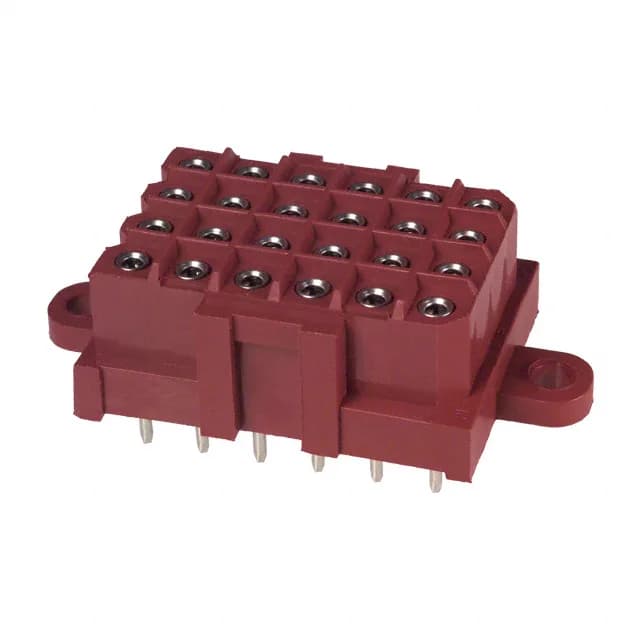

207532-8 TE Metrimate Header 24 Pos 5.00mm Pitch 4 Row
MPN207532-8
Active
TE Connectivity AMP Connectors Metrimate series, 207532-8, female socket header, 24 positions, 4 rows, 0.197" (5.00 mm) pitch, through-hole solder termination, tin-plated contacts, latch holder fastening, rated 7.5 A per contact at 600 V.
$23.2400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMetrimate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.565\" (14.35mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 4 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 24 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Product details
Frequently asked questions
What is the mating connector for 207532-8?
This is a female socket header that mates with a male pin header from the Metrimate series. The mating half must have 24 positions in a 4-row arrangement with 5.00 mm pitch. TE's Metrimate pin headers (e.g., 207532-8's male counterpart) or a compatible receptacle housing with crimp terminals are typical matches.
What is the pitch and number of rows for 207532-8?
The pitch is 0.197" (5.00 mm) on both the mating and row spacing. It has 4 rows with 24 positions total, all loaded.
