Right-angle 3-position header for tight board layouts

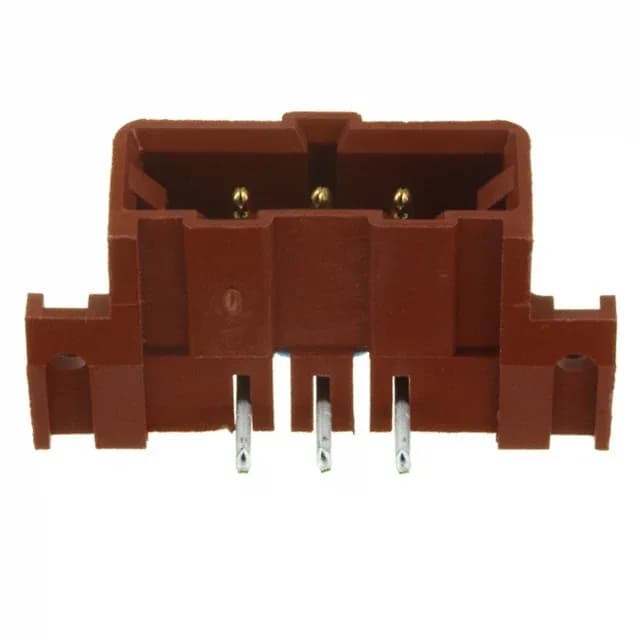

The 207541-7 is a 3-position, 5.00mm pitch right-angle header from the TE Metrimate series. It's a through-hole solder type with a fully shrouded 4-wall design and a mounting flange for board retention. Rated 7.5A per circuit at 600V, with gold-plated mating contacts (30.0µin) and tin-plated solder tails (150.0µin) — the gold side handles repeated mating cycles, the tin side gives a reliable solder joint. The latch holder fastening keeps the mated pair locked under vibration, which matters in automotive or industrial enclosures where the connector sees constant movement.
No stock-holding claim; we source per RFQ.
This header mates with a Metrimate receptacle (sold separately) using the latch holder for positive lock. The 5.00mm pitch and 3-position count must match the receptacle's pinout. The mounting flange adds mechanical stability during soldering and in service.
