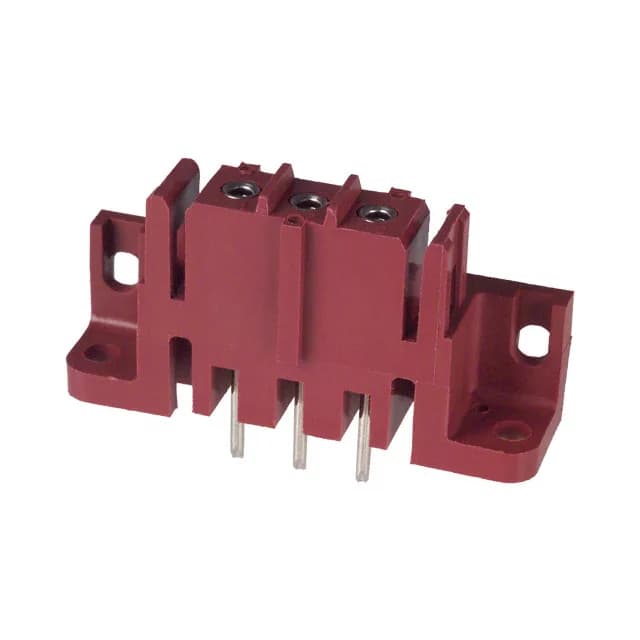

TE Connectivity AMP Connectors Metrimate series, 207609-6, female socket header, 3 positions, 0.197" (5.00mm) pitch, through hole, solder termination, tin mating/post finish, 7.5A, 600V, latch holder, UL94 V-0, -55°C to 130°C.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.768\" (19.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Mounting Flange |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.186\" (4.72mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 207609-6 is a 3-position, single-row female socket header from TE's Metrimate series, on a 0.197" (5.00mm) pitch. It terminates via through-hole solder and carries a 7.5A per contact rating at 600V. The latch holder fastening keeps the mated pair locked under vibration — a solid choice for panel wiring or board-to-cable power distribution.
Yes, the 207609-6 includes a mounting flange feature, which helps secure the header to the panel or board for additional mechanical stability.
The 207609-6 is a 3-position, single-row header with all positions loaded. The contact arrangement is a straight line on 5.00mm centers. Refer to the product drawing for the exact footprint dimensions.
