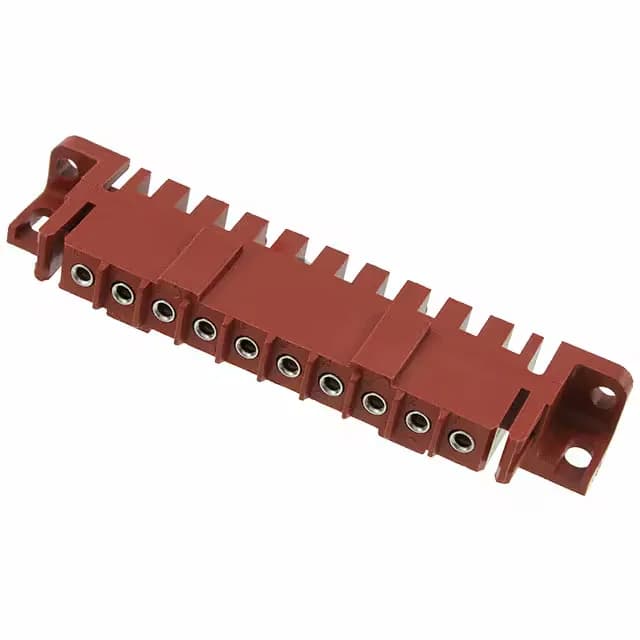

TE Connectivity AMP Connectors Metrimate header, order code 207612-1, 10 positions, single row, 5.00 mm pitch, 7.5 A, 600 V, tin-lead mating contacts, through-hole right-angle, solder termination.
TE 207612-1 Metrimate Header, 10 Pos, 5.00mm, Through Hole
MPN207612-1
Active
TE Connectivity AMP Connectors Metrimate header, order code 207612-1, 10 positions, single row, 5.00 mm pitch, 7.5 A, 600 V, tin-lead mating contacts, through-hole right-angle, solder termination.
$6.4500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.433\" (11.00mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Mounting Flange |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.186\" (4.72mm) |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Product details
Frequently asked questions
What is the 207612-1's style and series?
The 207612-1 is a Board to Cable/Wire style header from the Metrimate series by TE Connectivity AMP Connectors.
