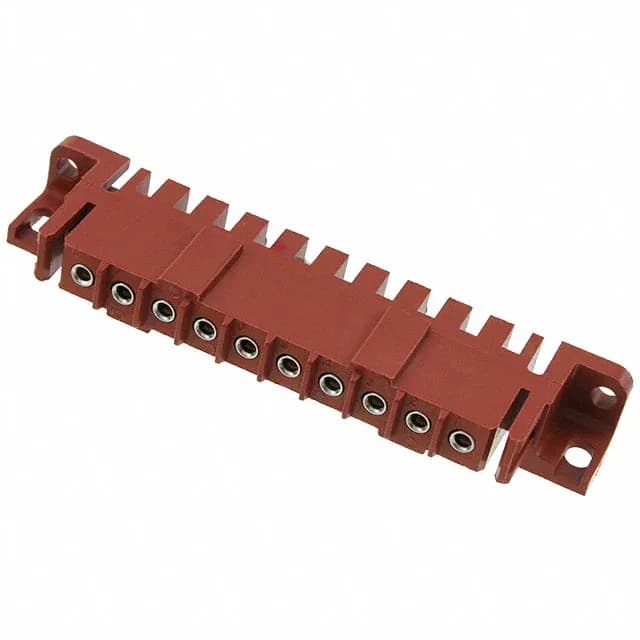

TE Connectivity Metrimate 207612-7, 10-position 5.00mm pitch right-angle board-to-cable header, 7.5A 600V, gold-plated mating contacts tin-plated solder post, through-hole, mounting flange, latch holder, tray.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.433\" (11.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Mounting Flange |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.186\" (4.72mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Insulation height is 0.433 inch (11.00 mm), and the contact post length is 0.186 inch (4.72 mm) — check your board thickness to ensure the post protrudes enough for a reliable solder fillet.
Contacts are phosphor bronze — a standard spring alloy that holds its shape through repeated mating cycles.
The mating pitch is 0.197 inch (5.00 mm), single row, 10 positions loaded all.
Yes, it is ROHS3 compliant.
Rated 7.5 A per contact at 600 V.
