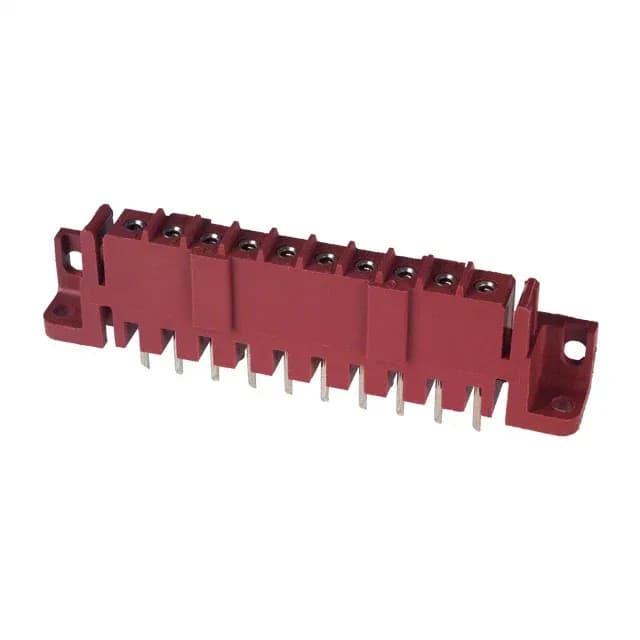

TE Connectivity AMP Connectors Metrimate series, 207613-6, Board to Cable/Wire, Header, Female Socket, Through Hole, Solder, 10 positions, 0.197" (5.00mm) pitch, Tin contact finish, 7.5A, 600V, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.768\" (19.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Mounting Flange |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.186\" (4.72mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 207613-6 is a through-hole header from the TE Metrimate series, designed for board-to-cable/wire connections. The latch holder fastening and mounting flange provide mechanical retention against cable strain in panel or enclosure applications.
The base product number 207613 covers the series. The suffix indicates a specific plating and packaging variant — verify the contact finish and package type in the spec table before substituting.
Yes, it is ROHS3 compliant.
The mating pitch is 0.197" (5.00 mm).
