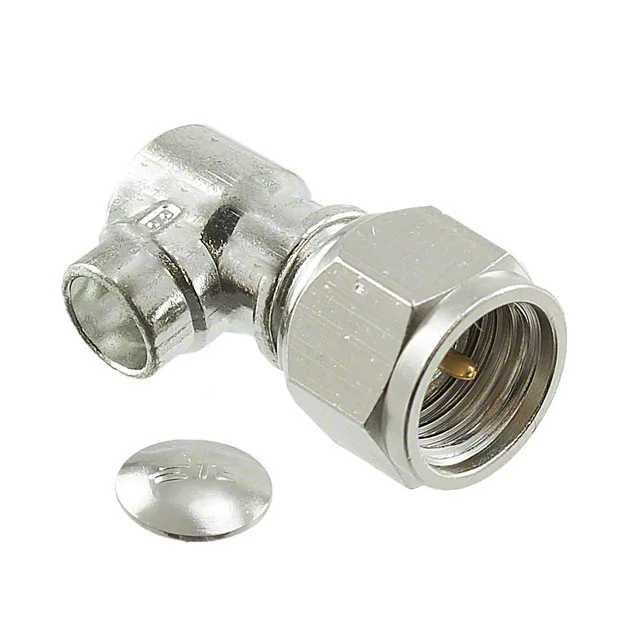

2081203-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 2081203-1 SMA Plug, 50 Ohm, 18 GHz, RG-402, Obsolete

MPN2081203-1
Obsolete

TE Connectivity KOAXXA SMA plug, 50 Ohm, 18 GHz, RG-402 semi-rigid, right-angle, solder contact, threaded, 335 V, 500 cycles, bulk.

$3.2100Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2081203-1 Technical Specifications
ParameterValue
SeriesKOAXXA
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating335 V
Frequency - max18 GHz
Cable groupRG-402 (.141\" Semi Rigid)
Operating temperature-65°C ~ 85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialCopper Alloy
PackageBulk
Includes2 pcs - 1 Connector, 1 End Cap
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

SMA right-angle plug for RG-402 semi-rigid cable

It is a right-angle, in-line free-hanging connector designed for RG-402 (.141" semi-rigid) cable. The interface is 50 Ohm nominal, rated to 18 GHz maximum frequency, making it suitable for microwave signal paths in test equipment, antenna feeds, and RF modules where a compact right-angle launch is needed. The threaded coupling provides vibration-resistant mating per the SMA standard. The centre contact is gold-plated copper alloy, with a nickel-plated zinc body and a silver housing. The contact is solder-terminated; the shield is crimped to the cable braid. The dielectric is polymethylpentene (PMP).

Buyers needing this connector should source through the surplus or broker channel. For a direct replacement, check the TE KOAXXA series for a current-production SMA plug with the same cable group and interface; no pin-compatible cross-reference is documented here.

Cable and termination details

This plug is built specifically for RG-402 (.141" semi-rigid) cable. The centre contact is soldered; the shield is crimped. The package includes the connector body and an end cap (2 pieces total). The right-angle body keeps the cable run parallel to the panel face, saving space in dense RF assemblies.

Frequently asked questions

Where can I purchase 2081203-1 available via RFQ confirmation?

The 2081203-1 is obsolete and not held available via RFQ confirmation. We source it to order against an RFQ through independent distribution — availability and current pricing are confirmed at quote time. Submit a request for your target quantity.

What is the replacement for obsolete 2081203-1?

No official replacement order code is listed by TE Connectivity. The part is in the KOAXXA series; a current-production SMA plug for RG-402 cable from the same series may serve as a functional alternative, but no pin-compatible cross-reference is documented here. Contact TE or a distributor to verify a drop-in substitute.
