TE Connectivity AMP Connectors 2098067-7 — Connector Housings

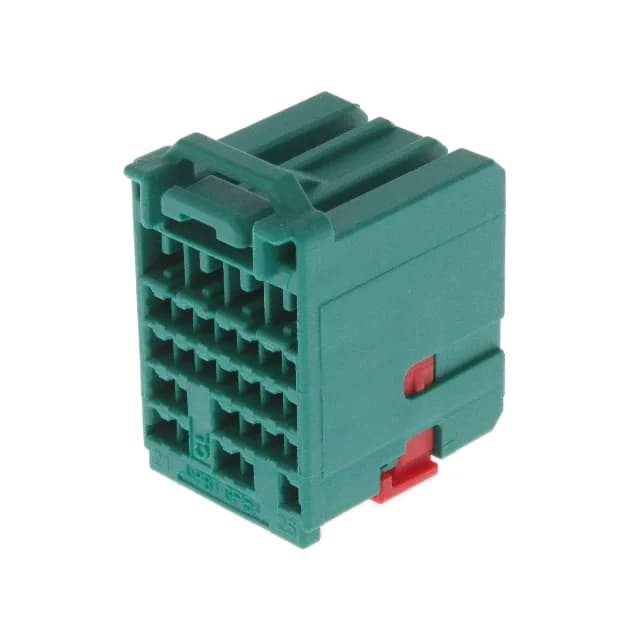

2098067-7 TE Connectivity 28-Position Hybrid Plug Housing

MPN2098067-7
Active

TE Connectivity AMP Connectors 2098067-7, 28-position hybrid plug housing, 5-row, green PBT glass-filled body, locking ramp fastening, free hanging (in-line) mount, female socket contacts not included, -40°C to 85°C operating range.

$2.1300Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2098067-7 specifications
ParameterValue
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 85°C
ColorGreen
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
PackageBulk
Rows5
Contact terminationCrimp
Positions28

Product details

The 2098067-7 is a 28-position plug housing from TE Connectivity's hybrid connector family, built for wire-to-board applications where you need multiple signal and power circuits in one connector body. The five-row layout packs 28 female socket cavities into a green PBT glass-filled shell that's free-hanging (in-line) and secured with a locking ramp — no header required on the wire side. This is a step up from a friction-lock housing, but it's not a secondary lock — if your harness sees heavy flex or constant movement, consider adding a TPA (terminal position assurance) device if the system supports one. It won't handle sustained under-hood engine-bay heat above 85°C, but for passenger compartment, HVAC, or machinery junction boxes it's well within the envelope.

Confirm the contact part number from the hybrid connector system drawing before placing the BOM. The mating header is a TE hybrid header with 28 positions in a 5-row configuration and a locking ramp receptacle. The exact header part number depends on the mounting style and contact plating.

Frequently asked questions

What is the mating header for 2098067-7?

The mating header is a TE hybrid series 28-position, 5-row header with a locking ramp receptacle. The exact part number depends on mounting style and contact plating — search the TE hybrid connector family for a 28-position, 5-row locking ramp header to match this plug housing.
