TE Connectivity AMP Connectors 2098660-1 — Connector Housings

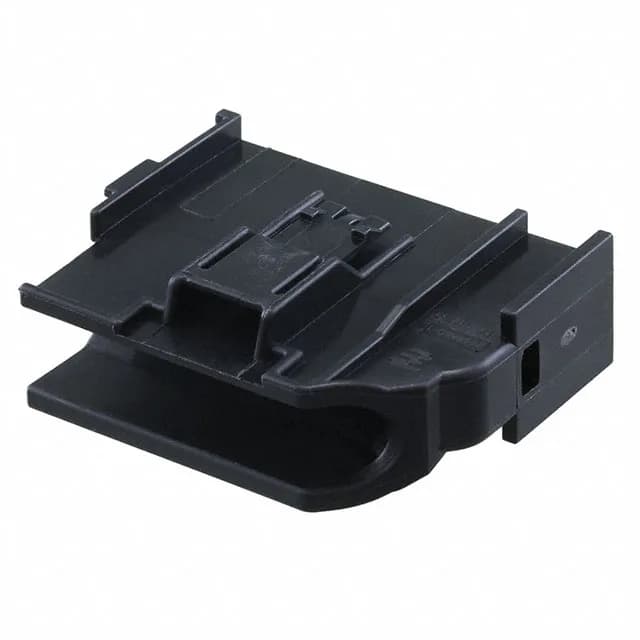

TE 2098660-1 Generation Y Plug Housing, 32 Pos, Right Angle

MPN2098660-1
Active

TE Connectivity Generation Y plug housing, 32 positions, 2 rows, right-angle cable exit, latch holder, crimp termination, -40°C to 125°C, black PA nylon glass-filled, bulk.

$1.3800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesGeneration Y
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2098660-1 specifications
ParameterValue
SeriesGeneration Y
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-40°C ~ 125°C
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
PackageBulk
FeaturesRight Angle Cable Exit
Rows2
Contact terminationCrimp
Positions32

Product details

Generation Y Plug Housing, 32 Circuits, Right-Angle Exit

The right-angle cable exit routes the wire bundle perpendicular to the mating axis, which saves space in tight enclosures or along panel edges where a straight pull would interfere with adjacent components.

What the Right-Angle Exit Means for Harness Routing

A right-angle cable exit changes the harness geometry compared to a straight-through plug. The wire bundle exits 90° from the connector mating face, which lets you run the cable along a panel or bulkhead instead of projecting outward. This matters in applications where clearance above the connector is limited — think engine control modules, HVAC blower motors, or junction boxes with a shallow lid. The latch holder keeps the plug locked to its mating header even when the cable is dressed at an angle and under tension.

Termination and Contact Compatibility

This housing accepts crimp male pin terminals. The contacts are ordered separately.

Frequently asked questions

Does the 2098660-1 come with contacts?

No. The listing explicitly notes Contacts Not Included. The housing ships empty; you must order the matching male pin crimp terminals separately.

What is the 2098660-1 used for?

It is a 32-position Generation Y plug housing with a right-angle cable exit, used in free-hanging wire harnesses for automotive, industrial, and outdoor telecom applications. The latch holder provides vibration-resistant retention, and the -40°C to 125°C temperature range suits thermally cycling environments.
