TE Connectivity AMP Connectors 2103245-6 — Connector Housings

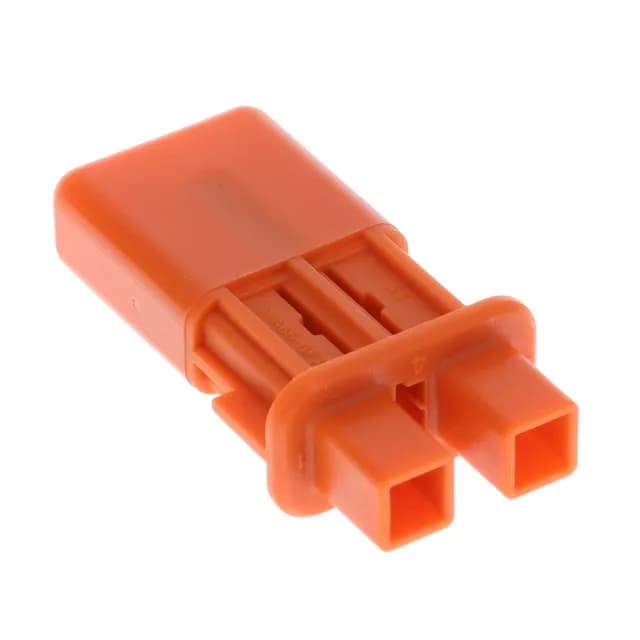

TE HVA 280 2103245-6 Header Housing, 2 Pos, Orange

MPN2103245-6
Active

TE Connectivity HVA 280 series header housing, 2103245-6, 2 positions, free-hanging (in-line), orange PA66 housing, crimp termination, contacts not included.

$1.1000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesHVA 280
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2103245-6 specifications
ParameterValue
SeriesHVA 280
TypeFemale Blade Socket
MountingFree Hanging (In-Line)
Connector typeHeader
Operating temperature-40°C ~ 140°C
ColorOrange
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
PackageBulk
Contact terminationCrimp
Positions2

Product details

It's a split header — the housing carries female blade socket cavities that accept separately ordered crimp terminals. The orange glass-filled PA66 body handles the -40°C to 140°C operating range, which puts it in engine bay, industrial cabinet, or outdoor equipment where the ambient temperature swings hard.

The listing note is clear: contacts are not included. The termination is crimp, so you'll also need the correct applicator tooling for your wire gauge. Don't land this on the BOM without a line item for the terminals or you'll have a box of orange plastic and nothing to stuff into it.

Active Production — No Obsolescence Worry

The lifecycle status is active — no last-time-buy notice, no phase-out. It's RoHS compliant, so it clears the regulatory gate for most commercial and automotive builds.

How It Compares: 1-1376477-6

The closest functional peer in the HVA 280 family is the 1-1376477-6 — same free-hanging crimp format, same PA66 material, but it's a 6-position plug in red, with a latch lock fastening. If your harness needs more than 2 circuits, the 1-1376477-6 is the next step up in the same series. The pitch on that sibling is 2.50 mm; the 2103245-6 doesn't list a pitch in the spec, so confirm the mating half spacing before swapping.

Frequently asked questions

Does 2103245-6 include contacts or are they sold separately?

Contacts are not included. The housing ships empty — you must order the matching female blade socket crimp terminals separately.
