TE Connectivity AMP Connectors, Economy Power 2.5 series, 2132230-4, 4-position single-row shrouded header, 2.50 mm pitch, tin-plated contacts, friction lock, through-hole solder termination, rated 4.2 A at 250 VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Economy Power 2.5 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 4.2A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | White |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.122\" (3.10mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 2132230-4: Sourced through independent distribution channels; quoted to order against your BOM quantity.

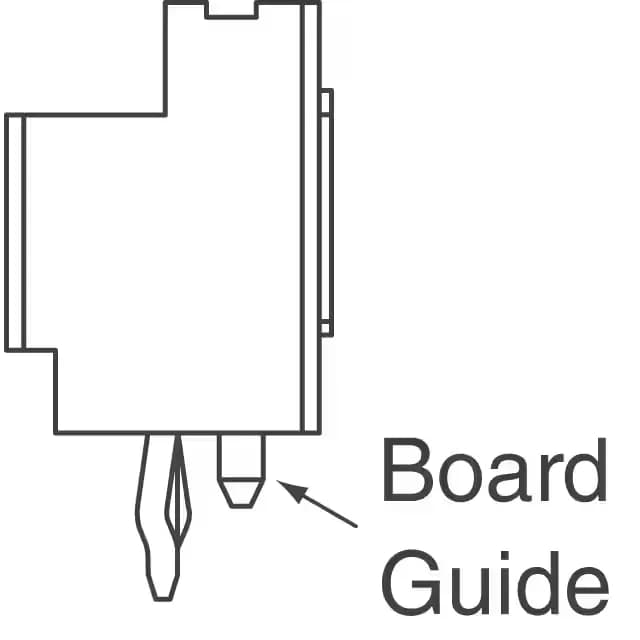

This header mates with a standard Economy Power 2.5 receptacle housing (TE part number 1-2834016-4 or similar) that accepts 20-24 AWG crimp terminals. Termination is kinked pin, solder — the kink provides retention during wave soldering. Board guide features assist alignment during assembly.
The closest functional alternative within the same series is TE's 1-1871673-2, a 4-position dual-row right-angle header with a detent lock. It uses the same 2.50 mm pitch and tin plating, but the footprint and orientation differ — a board spin is required to swap.
