32-Position Dual-Row Header at 0.100-inch Pitch

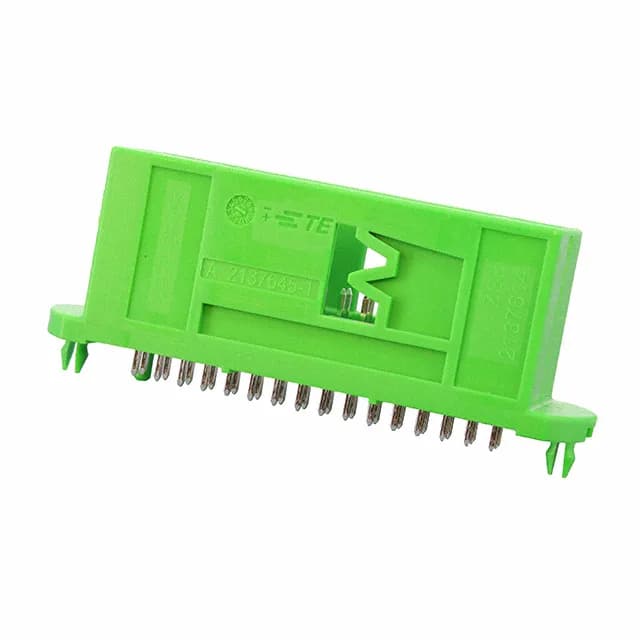

The 2137614-1 is a 32-position, dual-row header from TE Connectivity's AMPMODU Mod II series, on a 0.100-inch (2.54mm) pitch. The connector is rated for board-to-board or cable-to-board use.
Tin-Plated Contacts for Moderate-Cycle Duty
The solder tails are also tin-plated, compatible with standard lead-free wave solder profiles. Contact material is copper zinc (brass), a common choice for signal-level current (typically 1–3 A per contact, though the exact rating depends on the wire gauge and ambient temperature in the application).
Active Production — No End-of-Life Risk
The part is ROHS3 compliant and supplied in bulk packaging. Sourced through independent distribution against the BOM quantity.
The closest functional peer is 1379030-3: a 12-position, dual-row header with the same 0.100-inch pitch, shrouded 4-wall, and board lock. The 1379030-3 is right-angle (not vertical) and uses a friction lock instead of a latch holder. For a 12-position right-angle application, 1379030-3 is the direct cross-shop — the 2137614-1 gives you 32 positions and a vertical orientation. The 1394090-1 is a 6-position, single-row header at 0.112-inch pitch — different row count and pitch, not a footprint alternative. The 1-1871673-2 is a 4-position, dual-row header at 0.098-inch pitch with a detent lock — lower position count and a different locking mechanism.
