TE Connectivity AMP Connectors 213782-4
MPN213782-4
Active

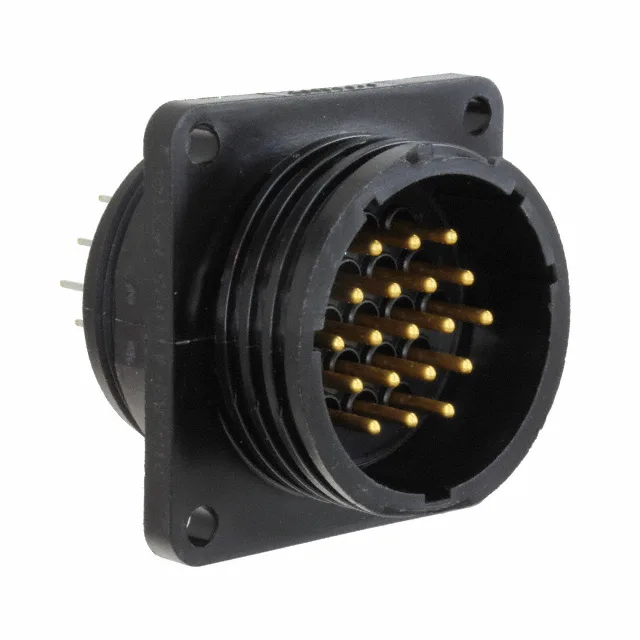

CONN RCPT MALE 19POS GOLD SOLDER
$56.82Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCPC Series 1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CPC Series 1 |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 250VAC/DC |
| Mounting feature | Flange |
| Operating temperature | -55°C ~ 105°C |
| Shell material | Polyamide (PA), Nylon |
| Contact material | Brass |
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Orientation | A |
| Termination | Solder |
| Positions | 19 |
| Shell size - insert | 23-19 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
