TE Connectivity AMP Connectors 2138558-3 — Connector Housings

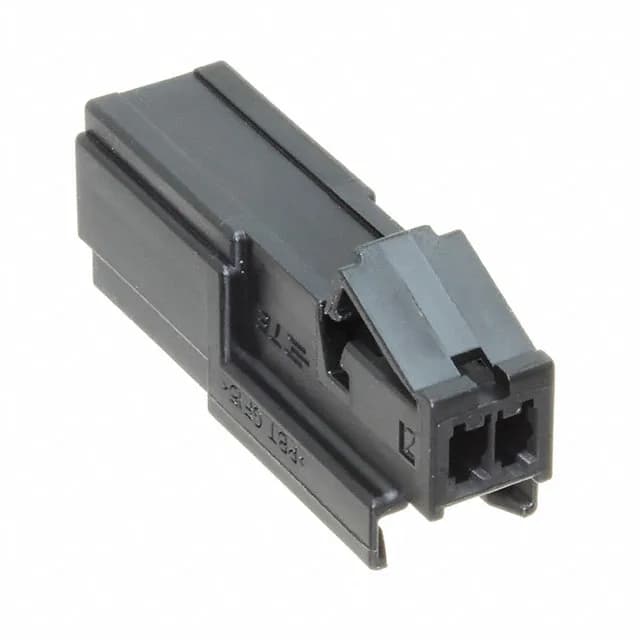

TE 2138558-3 Generation Y Receptacle Housing, 2 Pos, 2.54mm

MPN2138558-3
Active

TE Connectivity Generation Y receptacle housing, 2138558-3, 2 positions, 1 row, 0.100" (2.54mm) pitch, crimp termination, latch holder, free hanging, black PBT, -40°C to 100°C.

$0.6100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesGeneration Y
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2138558-3 specifications
ParameterValue
SeriesGeneration Y
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 100°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBag
Rows1
Contact terminationCrimp
Positions2

Product details

It's a free-hanging (in-line) crimp housing — you terminate the male pin contacts separately, then insert them into the cavities. The latch holder keeps the pair locked together under vibration, which matters in industrial control cabinets or automotive interior harnesses where a loose connector means an intermittent fault. Operating range is -40°C to 100°C, so it's fine for under-hood or outdoor cabinet duty as long as it's not directly in the engine bay.

Contacts are not included — that's the first line of the spec. You order the housing and the crimp terminals as separate line items. The housing accepts male pin contacts, so you need the matching Generation Y crimp pin. If you're filling a BOM, make sure the terminal part number is on a separate line; the housing alone won't make a circuit.

Mating Plug and Contact Compatibility

The mating half is the Generation Y plug header at the same 2.54 mm pitch. The latch holder on the receptacle engages with the corresponding lock feature on the plug, giving a positive tactile click when fully mated.

Frequently asked questions

Where can I buy the 2138558-3 and get a price?

The 2138558-3 is sourced to order through independent distribution. Submit an RFQ with your target quantity and we'll return a current price and lead time — availability is confirmed at quote time. No stock-holding claim; we quote per request.

What contacts fit the 2138558-3 housing?

The 2138558-3 accepts male pin crimp contacts from the Generation Y series. The contacts are ordered separately — the housing ships empty. Use the Generation Y male crimp terminal specified for 2.54 mm pitch housings.

What is the mating plug for the 2138558-3?

The mating plug is the Generation Y plug header at the same 2.54 mm pitch. The latch holder on the receptacle locks with the plug's matching feature for vibration-resistant mating.
