TE Connectivity AMP Connectors 215079-4 — Female Socket Headers

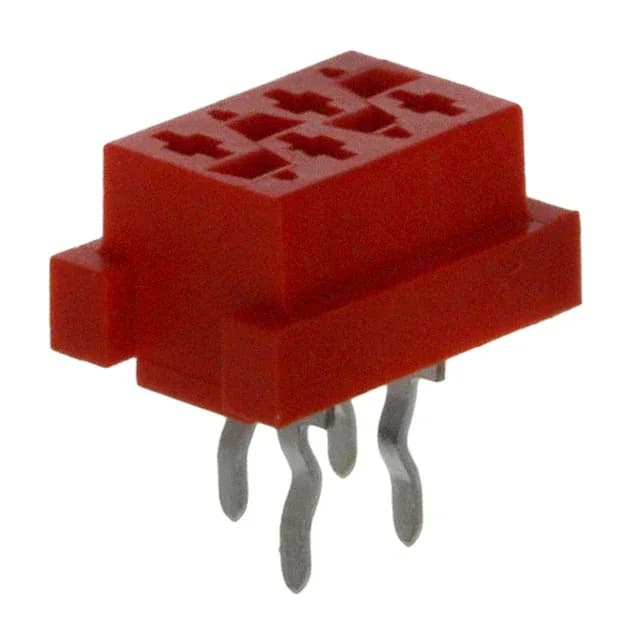

215079-4 TE Connectivity Micro-MaTch 4-Pin Receptacle

MPN215079-4
Active

TE Connectivity AMP Connectors Micro-MaTch receptacle, 4 positions, 0.100" (2.54mm) pitch, dual-row, tin-plated forked contacts, through-hole solder termination, UL94 V-0 housing.

$0.3700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

215079-4 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.157\" (4.00mm)
Insulation materialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

215079-4 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions4
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

What this 4-position Micro-MaTch receptacle is

The 215079-4: The 0.100" (2.54mm) mating pitch matches standard perf-board grids and sets the PCB footprint — each row is spaced 0.100" apart, so the 4-pin layout occupies two rows of two holes.

Through-hole mount with kinked, tin-plated solder posts. The post length is 0.122" (3.10mm) — enough for a standard 1.6mm PCB with the solder fillet forming on the bottom side.

ROHS3 compliant — no exemptions expired; the part is fully lead-free and suitable for RoHS-driven builds.

Frequently asked questions

What connectors mate with 215079-4?

For a vibration-resistant application, consider a header with a locking ramp if available in the series.
