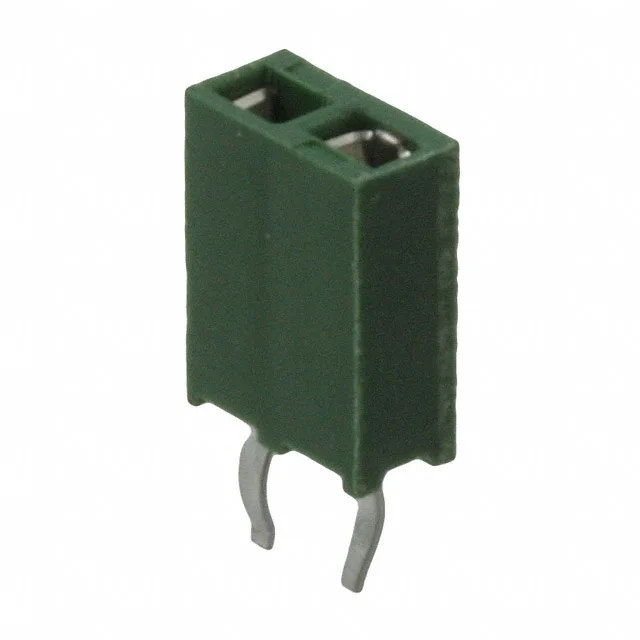

TE Connectivity AMPMODU HV-100, 2-position single-row female socket receptacle, 0.100" (2.54 mm) pitch, through-hole, gold mating finish, kinked pin solder termination, UL94 V-0, bulk.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
Through-hole mounting with kinked pins: the kink provides retention during soldering and a positive stop against the board. The post length of 0.122" (3.10 mm) suits standard 0.062" PCBs. Insulation height of 0.276" (7.00 mm) sets the mated stack height above the board.
ROHS3 compliant. Bulk packaging.
Confirm the header's post length and plating match your application.
Yes, it is ROHS3 compliant.
