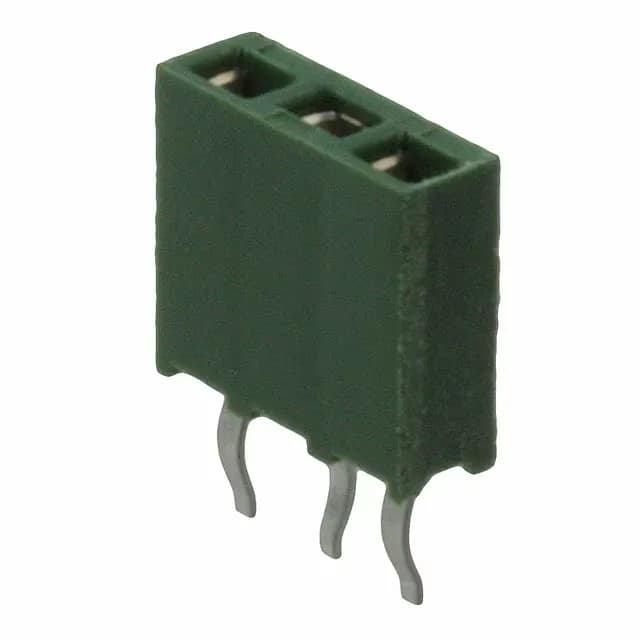

TE Connectivity AMP Connectors 215297-3 — Female Socket Headers

215297-3 TE Connectivity AMPMODU HV-100 3-Position Female

MPN215297-3
Active

TE Connectivity AMPMODU HV-100, 3-position female socket header, 0.100" (2.54mm) pitch, through-hole, gold mating finish, RoHS, bulk.

$0.9300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 215297-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU HV-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

215297-3 key specifications
ParameterValue
SeriesAMPMODU HV-100
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorGreen
Insulation height0.276\" (7.00mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk

All specifications

215297-3 additional specifications
ParameterValue
TerminationKinked Pin, Solder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingGold
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

Board-to-board signal routing with a 3-position receptacle

The 215297-3: The single-row layout keeps the PCB footprint narrow — useful for routing signals along a board edge or in a tight z-height budget where a full dual-row header would overhang the trace channel. The tin post wets reliably during wave or hand soldering.

Through-hole termination and board retention

Termination is through-hole with a kinked pin — the kink provides a press-fit retention force during soldering, holding the connector in place on the board before the solder joint solidifies. The post length is 0.122" (3.10mm), which suits standard 0.062" (1.6mm) PCBs with a through-hole solder fillet on the bottom side. Insulation height is 0.276" (7.00mm), giving clearance for the mating header's shroud or latch above the board surface.

Mating compatibility within the AMPMODU HV-100 series

The square pin shape of the mating header (common in AMPMODU) ensures four-point contact inside the socket.

Sourced through independent distribution; quantities are confirmed per RFQ.

Frequently asked questions

Where can I buy 215297-3 and how is it quoted?

It is quoted to order against your BOM quantity — no stock-holding claim is made.

What is the pitch of 215297-3?

The mating pitch is 0.100" (2.54mm). This is the standard AMPMODU HV-100 pitch and matches the footprint of all headers in that series.

Does 215297-3 have a direct replacement or equivalent?

No direct replacement or pin-compatible equivalent is listed by TE. The base product number 215297 covers the series, and the -3 suffix is the specific 3-position variant. If you need a different position count, the AMPMODU HV-100 series includes 2-, 4-, and higher-position receptacles at the same pitch.
