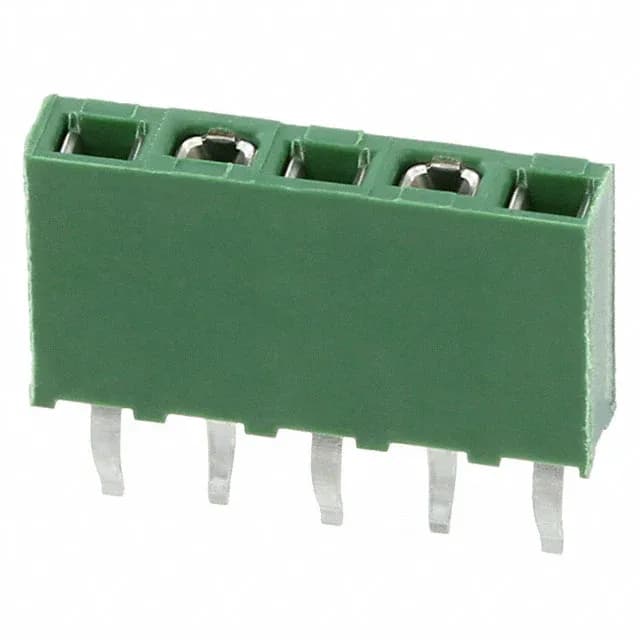

TE Connectivity AMP Connectors AMPMODU HV-100, 5-position single-row receptacle, 0.100" (2.54 mm) pitch, through-hole, gold mating finish, push-pull fastening, UL94 V-0 green housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
Rated UL94 V-0 for the polyester, glass-filled housing — the material will not sustain flame in equipment inside an enclosure requiring flammability certification.
For a full BOM, order the receptacle body plus the matching header and the crimp or solder terminals separately.
1376775-2 is the closest peer: same 5 positions, same pitch, same receptacle function, but with a black housing and 8.00 µinch gold mating finish versus the 31.5 µinch gold on 215297-5. The thinner gold limits mating cycle life, so evaluate your reconnect duty before substituting.
