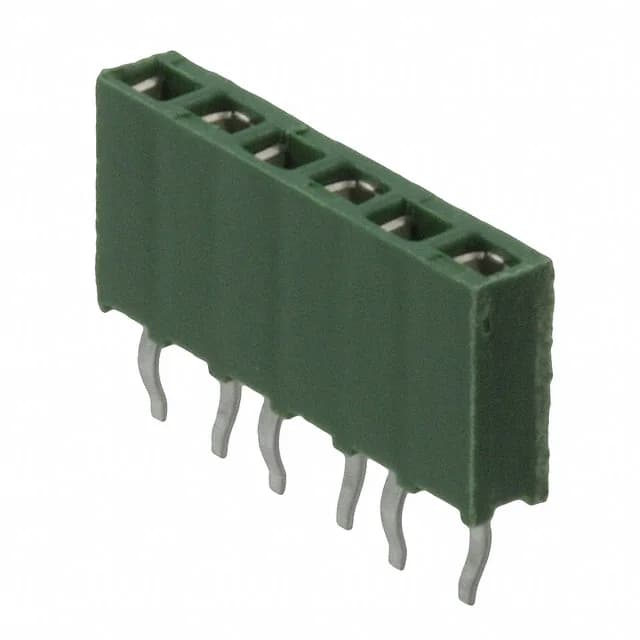

TE Connectivity AMPMODU HV-100, 215297-6, Board to Board, 6 Position, 0.100" (2.54mm) Pitch, Through Hole, Gold Mating, Tin Post, Kinked Pin Solder, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
Gold plating on the mating surface (31.5µin / 0.80µm) supports repeated mating cycles, while the tin-plated posts (118.1µin / 3.00µm) solder cleanly to the PCB.
The 0.122" (3.10mm) post length suits typical 1.6mm-thick PCBs.
ROHS3 compliant, bulk packaging. No official successor or cross-reference from TE.
This receptacle mates with any standard 0.100" (2.54mm) pitch square-pin header, such as TE's AMPMODU HV-100 or equivalent series. The push-pull retention means no latch — the mated connection relies on the board stack and solder joints.
