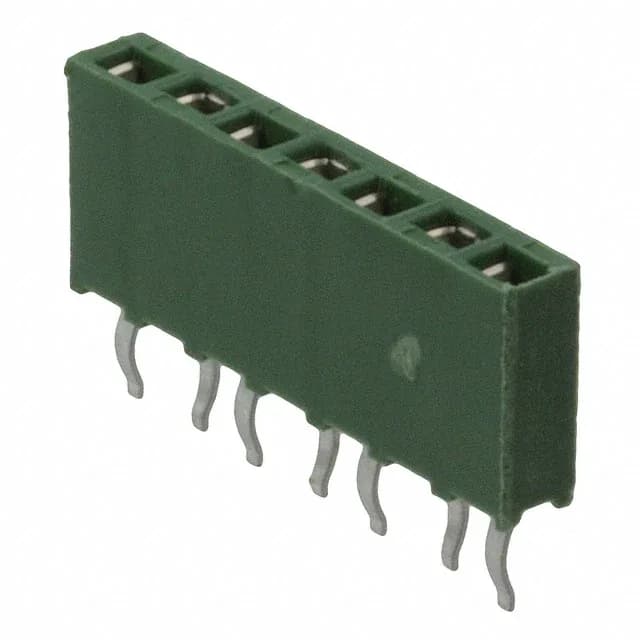

TE Connectivity AMP Connectors AMPMODU HV-100 female socket header, 7 positions, 0.100" (2.54 mm) pitch, through-hole, kinked pin solder termination, gold mating finish, UL94 V-0, RoHS, Active.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 215297-7: RoHS compliant.
The through-hole footprint requires 7 plated holes on 0.100" centers; the 0.122" (3.10 mm) post length suits standard 1.6 mm thick PCBs. Insulation height of 0.276" (7.00 mm) sets the mated stack height above the board surface.
The 215297-7 is sourced through independent distribution channels. Submit an RFQ for a firm quote and lead time.
The AMPMODU HV-100 series includes other position counts, but a pin-compatible alternative would require matching the 7-position, 0.100" pitch, single-row, through-hole footprint.
