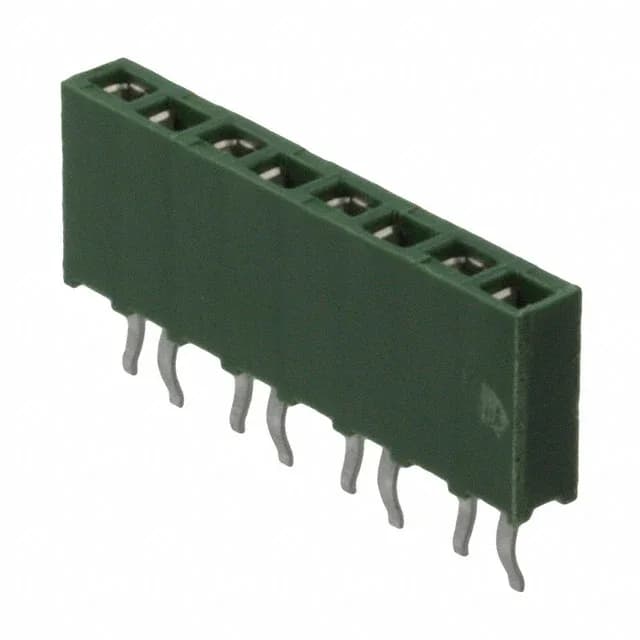

8-Position, 0.100" Pitch, Gold-Plated Socket Header
The 215297-8 is an 8-position single-row receptacle from the AMPMODU HV-100 series, designed for board-to-board interconnect where a reliable, separable connection is needed.
Board-to-Board Fit and Mating Half
This is a female socket header — it mates with a 0.100" pitch male pin header (square pins, 0.025" square typical). For vibration-prone assemblies, a header with a friction lock or a secondary retention feature is worth considering. The 0.276" (7.00 mm) insulation height gives clearance above the board for the mating header's shroud or standoffs. The 0.122" (3.10 mm) solder post length fits standard 1.6 mm thick PCBs with enough protrusion for a reliable solder fillet.
