TE Connectivity AMP Connectors 215299-6 — Female Socket Headers

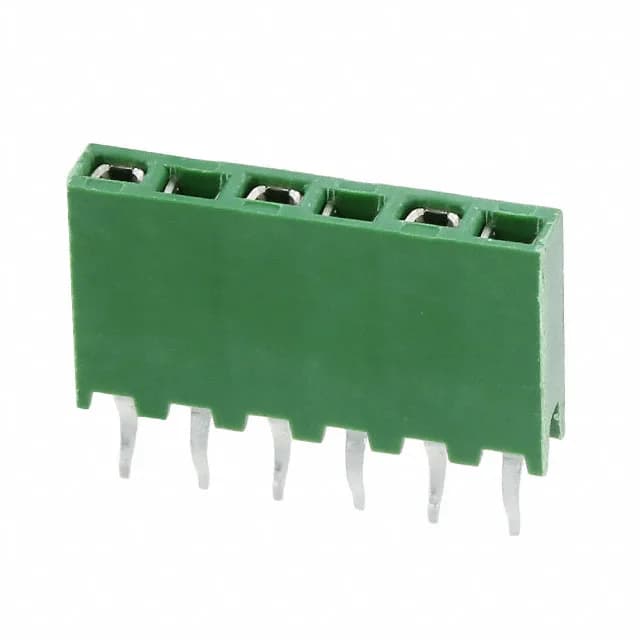

215299-6 TE Connectivity AMP Connectors Female Socket Header

MPN215299-6
Active

TE Connectivity AMP Connectors AMPMODU HV-100, 215299-6, board-to-board female socket header, 6 positions, 0.100" (2.54 mm) pitch, through-hole, gold mating finish, kinked pin solder termination, UL94 V-0 housing.

$1.1800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU HV-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

215299-6 key specifications
ParameterValue
SeriesAMPMODU HV-100
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack or Green
Insulation height0.335\" (8.51mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk

All specifications

215299-6 additional specifications
ParameterValue
TerminationKinked Pin, Solder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingGold
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

What this 6-position receptacle does in a board-to-board stack

Housing, material, and environmental ratings

The connector uses a push-pull fastening type — no locking latch, so it is best suited for applications where the mated pair is not exposed to high vibration or where a positive lock is provided by the header or housing. The contact post length of 0.122" (3.10 mm) determines the solder tail protrusion below the board — confirm this matches your PCB thickness and solder joint profile. Phosphor bronze contacts with tin-plated posts (118.1 µinch / 3.00 µm) give a reliable solder joint; the gold mating surface handles the contact interface.

Frequently asked questions

What is the pitch of 215299-6?

The mating pitch is 0.100" (2.54 mm), which matches standard pin headers and IDC connectors.

Is 215299-6 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the mounting type of 215299-6?

Through-hole mounting with kinked pins for solder termination.

What is the closest pin-compatible alternative to 215299-6 in this Female Socket Headers family?

The AMPMODU HV-100 series includes other position counts and plating options — confirm your BOM position count and pitch before substituting.
