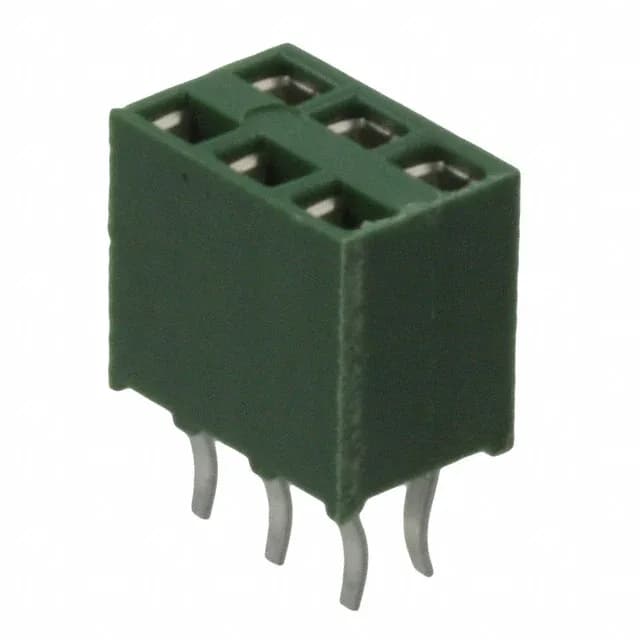

TE Connectivity AMP Connectors AMPMODU HV-100 receptacle, 6 positions, 0.100" (2.54 mm) pitch, dual-row, through-hole, kinked-pin solder termination, gold mating finish, UL94 V-0 green polyester housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 215307-3: Six positions, dual-row, all loaded: the two-by-three grid fits standard AMPMODU HV-100 pin headers and keeps the board area compact.
31.5 µinch (0.80 µm) gold over phosphor bronze on the mating face — this thickness supports repeated mating without fretting corrosion.
0.100" (2.54 mm) on both the mating pitch and the row spacing.
Yes, it is ROHS3 compliant.
1376775-2 is a 5-position sibling in the same AMPMODU HV-100 series with a thinner 8.00 µinch gold flash. For a 6-position, higher-durability gold requirement, 215307-3 is the direct choice.
