TE Connectivity AMP Connectors 215307-4 — Female Socket Headers

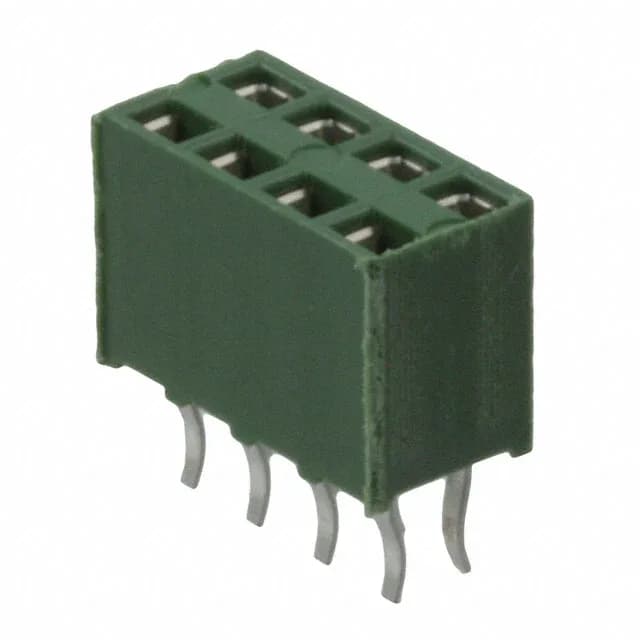

215307-4 TE Connectivity AMPMODU HV-100 8 Pos Receptacle

MPN215307-4
Active

TE Connectivity AMPMODU HV-100, 215307-4, 8-position dual-row receptacle, 0.100" (2.54mm) pitch, through-hole, gold mating contacts, UL94 V-0, tray.

$1.1200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU HV-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

215307-4 key specifications
ParameterValue
SeriesAMPMODU HV-100
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack or Green
Insulation height0.276\" (7.00mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTray

All specifications

215307-4 additional specifications
ParameterValue
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingGold
Contact finish thickness - post98.4µin (2.50µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

Board-to-board receptacle for 8-position 2.54mm pitch headers

The 215307-4 is an 8-position, dual-row female socket header from TE's AMPMODU HV-100 series, designed for board-to-board interconnects on a standard 0.100" (2.54mm) pitch grid.

Sourcing and lifecycle status for the 215307-4

Fully RoHS3 compliant, lead-free, and packaged in tray format for automated pick-and-place or hand assembly.

Comparing the 215307-4 with the 1376775-2 alternative

The 1376775-2 is a 5-position dual-row receptacle in the same AMPMODU HV-100 family, sharing the same 0.100" pitch and gold mating finish — but with a thinner 8.00µin gold layer vs the 215307-4's 31.5µin, which reduces mating cycle life in frequent-connect applications.

Frequently asked questions

What is the pin configuration of the 215307-4?

It is an 8-position, dual-row receptacle with all positions loaded. The pitch is 0.100" (2.54mm) between contacts and between rows. The contact length after the kinked pin is 0.122" (3.10mm) for through-hole soldering.

Is the 215307-4 RoHS compliant?

Yes, it is rated ROHS3 Compliant, meaning it meets the latest EU RoHS directive without exemptions for lead or other restricted substances.
