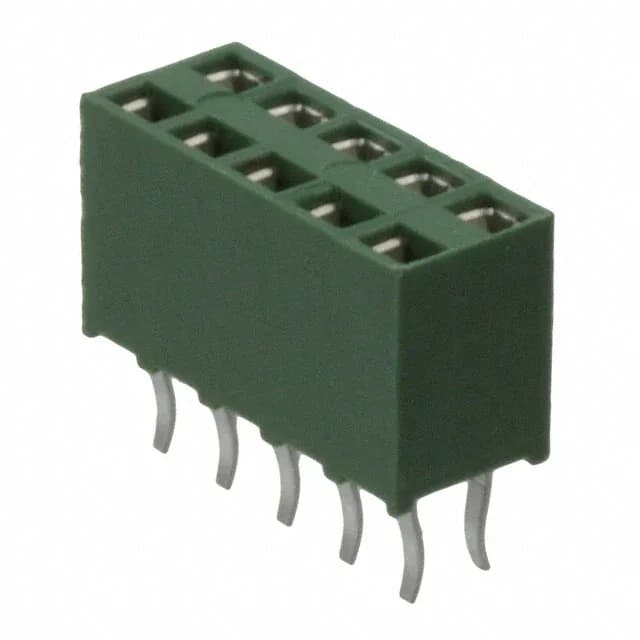

TE Connectivity AMP Connectors 215307-5 — Female Socket Headers

215307-5 TE Connectivity AMPMODU HV-100 10-Position

MPN215307-5
Active

TE Connectivity AMPMODU HV-100, Board to Board, Receptacle, 10 Positions, 0.100" (2.54 mm) Pitch, Through Hole, Gold Mating Contact, Tin Post, Tray

$1.1000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU HV-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

215307-5 key specifications
ParameterValue
SeriesAMPMODU HV-100
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack or Green
Insulation height0.276\" (7.00mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTray

All specifications

215307-5 additional specifications
ParameterValue
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingGold
Contact finish thickness - post98.4µin (2.50µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

The 215307-5: The through-hole termination with kinked pins locks the part in place during soldering, and the 0.122" post length gives enough standoff for wave solder clearance on a standard 1.6 mm board. Black or green insulator colour is the only variation — both meet the same material spec.

Mating interface and contact finish

For a board-to-board connector that sees periodic rework or field replacement, this plating grade is the difference between a reliable connection and a fretting-corrosion failure. The post side is tin-plated at 98.4 µinch (2.50 µm) — standard for solder-joint compatibility with lead-free wave solder.

Frequently asked questions

Where can I buy 215307-5 and how do I get a price?

The 215307-5 is sourced to order through independent distribution. No stock-holding claim is made — each order is sourced per the BOM.

What is the pitch of 215307-5?

The mating pitch is 0.100" (2.54 mm), with the same 0.100" row spacing. This sets the PCB footprint and the per-contact current ceiling.

What connector mates with 215307-5?

This receptacle mates with a 0.100" pitch pin header from the AMPMODU HV-100 series — typically a 10-position dual-row header with square pins.

What is the gold plating thickness of 215307-5?

31.5 µinch (0.80 µm) gold over nickel on the mating contact, with 98.4 µinch (2.50 µm) tin on the solder post.
