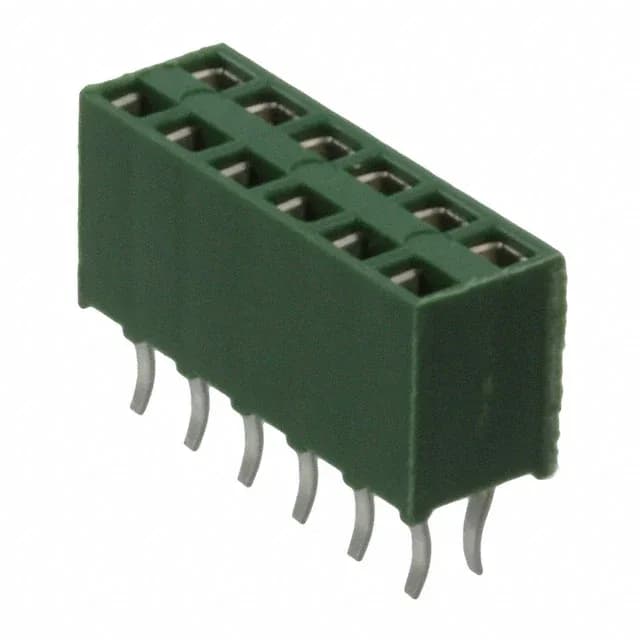

TE Connectivity AMP Connectors AMPMODU HV-100 female socket header, 12 positions, 0.100" (2.54 mm) pitch, 2 rows, gold mating finish, through-hole kinked pin solder termination, tray pack.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 215307-6: All 12 positions are loaded, so there is no unpopulated pin to manage on the BOM or the layout.
ROHS3 compliant — no conflict with current environmental directives.
Row spacing is also 0.100" (2.54 mm), so the footprint is a straightforward 2×6 grid of 0.025" square holes.
The push-pull engagement means no locking latch — just align and push.
