Board-to-board receptacle for parallel PCB stacking
The kinked-pin solder termination locks the part in the plated-through hole during wave solder, preventing float before the joint solidifies.

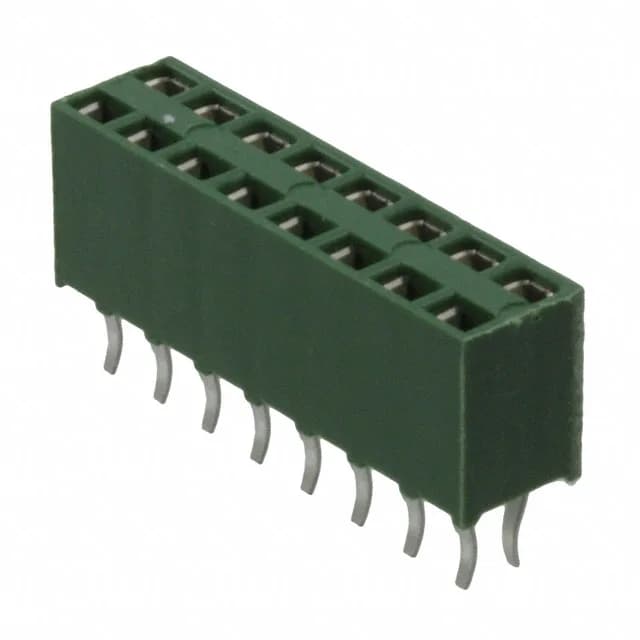

215307-8 TE Connectivity AMPMODU HV-100 16-Pos Female
MPN215307-8
Active
TE Connectivity AMP Connectors AMPMODU HV-100, 215307-8, Female Socket Header, Board to Board, 16 positions, 2 rows, 0.100" (2.54mm) pitch, Through Hole, Kinked Pin Solder termination, Gold mating finish, Tin post finish, UL94 V-0, Active, RoHS3 Compliant.
$2.9000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU HV-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
Product details
Frequently asked questions
Does 215307-8 have a locking mechanism?
No. The fastening type is Push-Pull, so the connector is held in place by contact friction only. For vibration-prone environments, a header with a locking ramp or latch would be needed.
