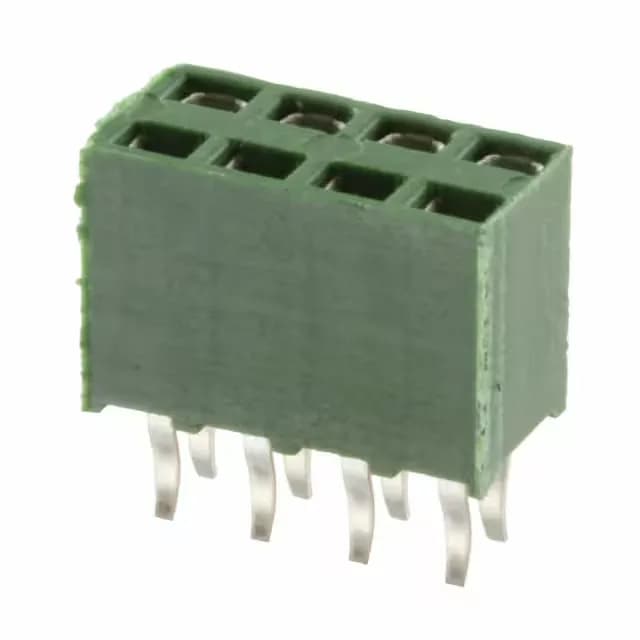

TE Connectivity AMPMODU HV-100 receptacle, order code 215308-4, 8 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 98.4µin (2.50µm) |
The 215308-4 is the 8-position dual-row member of the TE Connectivity AMPMODU HV-100 board-to-board receptacle line. Tin-plated mating contacts (98.4µin / 2.50µm) suit moderate-cycle applications; the through-hole mounting with kinked pins provides retention during soldering.
RoHS and REACH compliance documentation is provided by the manufacturer.
