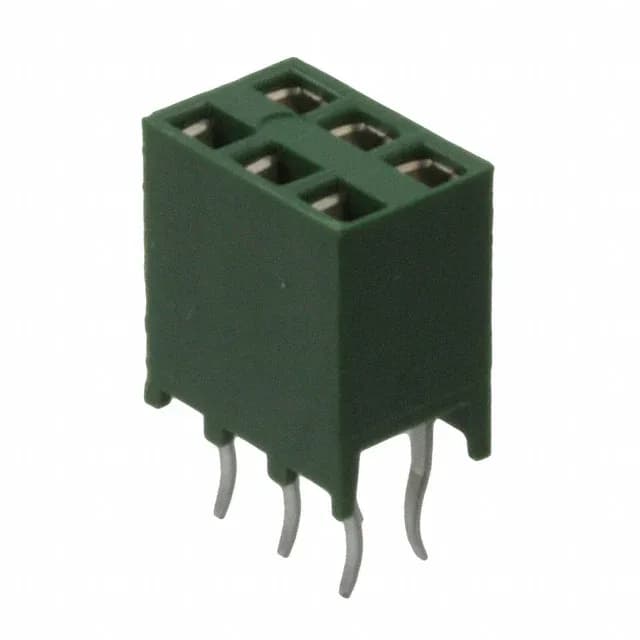

TE Connectivity AMPMODU HV-100 board-to-board receptacle, 215309-3, 6 positions dual-row, 0.100" (2.54mm) pitch, gold mating finish, through-hole kinked pin solder termination, UL94 V-0 green polyester housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 215309-3 is a 6-position, dual-row board-to-board receptacle from the AMPMODU HV-100 series, with a 0.100" (2.54mm) pitch on both rows and between rows. It uses a through-hole, kinked-pin solder termination and a push-pull fastening type.
The mating contacts are finished with 31.5µin (0.80µm) gold over phosphor bronze, while the solder posts get a thicker 98.4µin (2.50µm) tin layer.
215309-3 is a receptacle that mates with a 0.100" pitch, dual-row pin header from the AMPMODU HV-100 series. The header should have 6 positions (2x3), square pins, and a mating finish compatible with the gold receptacle contacts.
