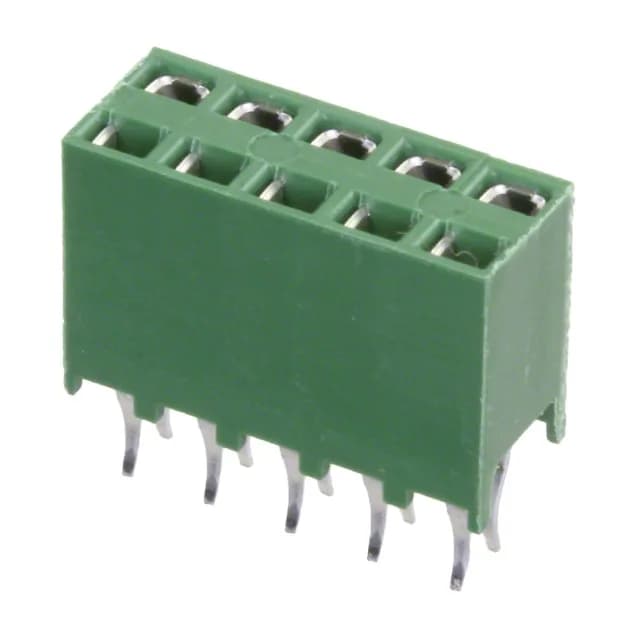

Board-to-board stacking receptacle for 0.100" pitch layouts
It uses a 0.100" (2.54 mm) mating pitch with an identical row spacing, making it a direct fit for standard 0.100" pin headers. The through-hole termination uses kinked solder pins (0.122" post length) for secure board retention during wave soldering. The housing is glass-filled polyester rated UL94 V-0.
Gold mating finish for moderate cycle life
The solder tails are tin-plated (98.4 µin) for good solderability. For vibration-prone assemblies, consider a header with a locking ramp.
Position count variant: 215309-4 for 8-circuit needs
If your design needs fewer circuits, the -4 is a direct drop-in replacement for the footprint.
